Clockspring Assembly / Spiral Cable: Testing and Inspection

1. Remove the driver-side air bag module.

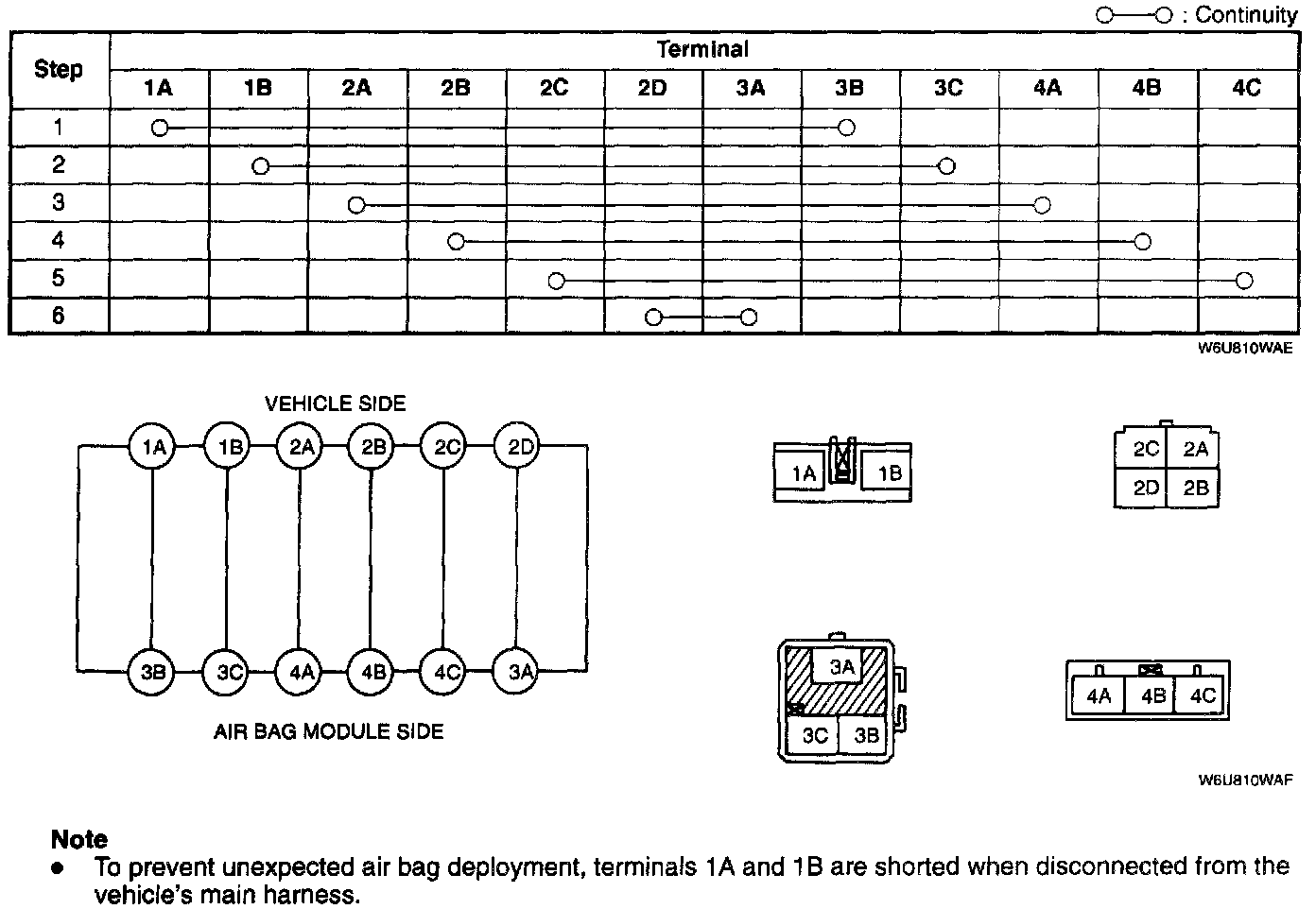

2. Disconnect the clock spring connector.




3. Check for continuity between the clock spring terminals.
4. If not as specified, replace the clock spring.
