Fuel Injector Resistance Test

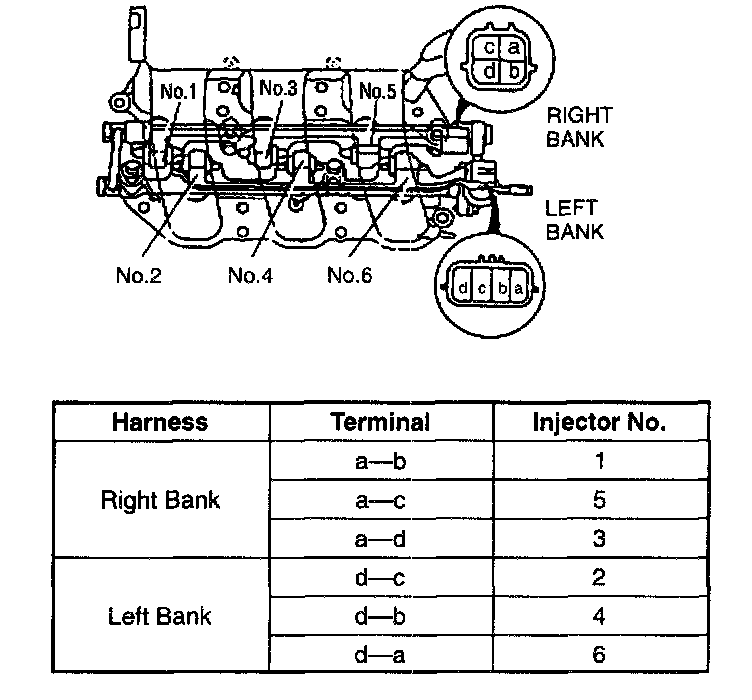

1. Turn off the ignition switch and disconnect the fuel injector connectors.




2. Measure resistance of the fuel injectors with an ohmmeter .

Resistance: 12-16 ohms @ 20°C (68°F)

3. If not as specified, inspect continuity of the harness and inspect for poor connection.

4. If the harness is okay, replace the fuel injector.
