Airbag Module Deployment

AIR BAG MODULE DISPOSAL PROCEDURE
Before scrapping a vehicle with an undeployed air bag module, deploy the air bag. Never dispose of a live air bag module. If the SST is not available, consult the nearest Mazda representative for assistance.






Air Bag Deployment

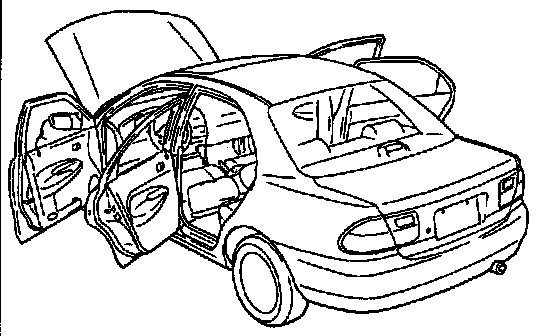

1. Move the vehicle to an open space, away from strong winds, and open all of the vehicle's doors.
2. Disconnect the negative battery cable and wait for more than one minute to allow the backup power supply to deplete its stored power.
3. Follow the appropriate procedure for the driver-side or passenger-side air bag module.






Driver-side air bag
(1) Make sure the air bag module is firmly mounted to the steering wheel.
(2) Disconnect the orange and blue clock spring connectors.

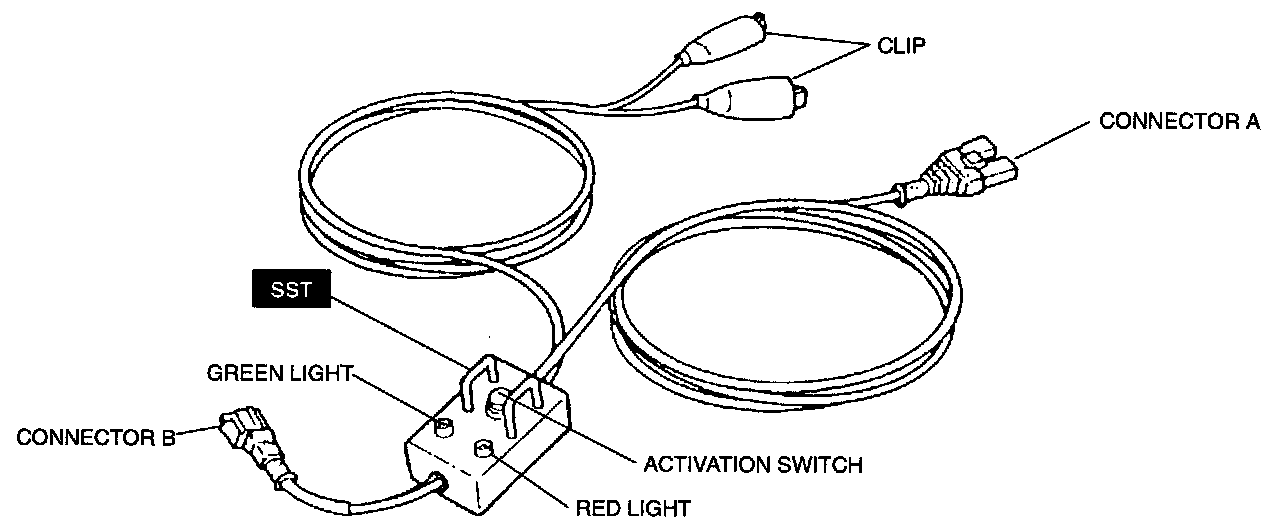

(3) Inspect the SST.

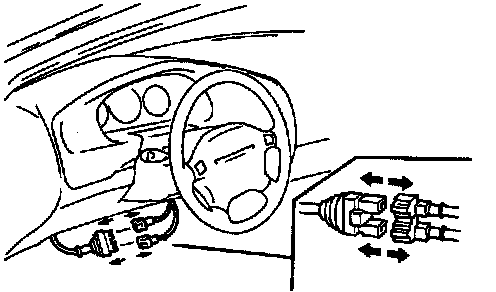

(4) Connect the SST to the clock spring connector as shown in the figure.






Passenger-side air bag
(1) Make sure the air bag module is firmly mounted to the dashboard.
(2) Remove the passenger-side scuff plate and front side trim.

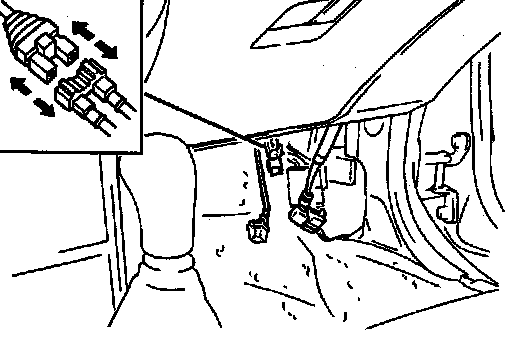

(3) Disconnect the orange and blue passenger-side air bag module connector.
(4) Inspect the SST.

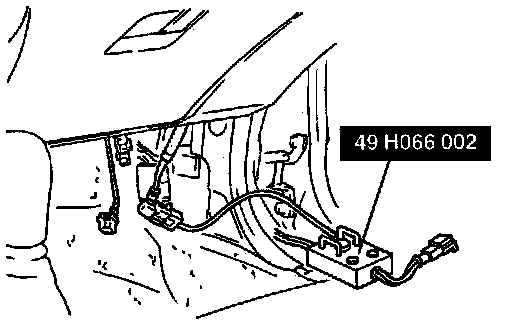

(5) Connect the SST to the passenger-side air bag module connector as shown in the figure

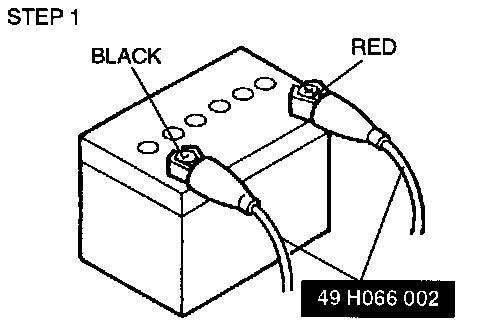

a. Connect the red clip of the SST to the positive battery terminal and the black clip to the negative terminal.






b. Verify that the red light on the SST is illuminated.
c. Make sure all persons are standing at least 6 m {20 ft} from the vehicle.
d. Press the activation switch on the SST to deploy the air bag.






Air Bag Disposal

Warning: The air bag is very hot immediately after it deploys. You can be burned. Do not touch the air bag module for at least 15 minutes after deployment.

Warning: Pouring water on a deployed air bag is dangerous. The water will mix the residual gases to form a gas that can make breathing difficult if inhaled. Do not pour water on the deployed air bag module.

Warning: A deployed air bag module may contain deposits of sodium hydroxide, a caustic by-product of the gas-generated combustion. If this substance gets in your eyes or on your hands, it can cause irritation and itching. When handling a deployed air bag module, wear gloves and safety glasses.






1. Put on gloves and safety glasses.
2. Place the deployed air bag module in a plastic bag, seal it, and then dispose of it.
3. Wash your hands after removing your gloves.






INSPECTION OF SST (DEPLOYMENT TOOL)
- Use the SST to deploy a live air bag module before disposing of it.
- Before connecting the SST to the clock spring connector or air bag module connector, inspect the operation of the SST.
















INSPECTION OF SST (DEPLOYMENT TOOL)

- Use the SST to deploy a live air bag module before disposing of it.
- Before connecting the SST to the clock spring connector or air bag module connector, inspect the operation of the SST.

Inspection Procedure

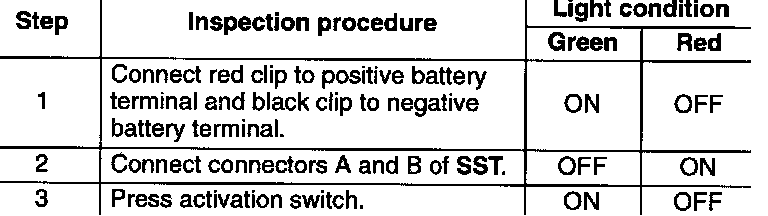

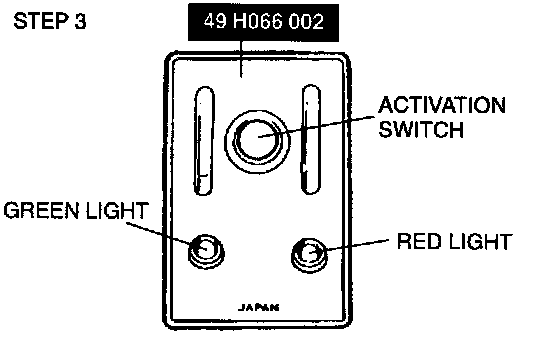

1. Follow the steps below to inspect the operation of the SST.






2. If not as specified, do not use the SST because it may cause the air bag to unexpectedly deploy upon connection to the harnesses.
