Driver Side

DRIVER-SIDE AIR BAG MODULE
Removal/Installation

Warning: Handling the air bag module improperly can accidently deploy the air bag, which may seriously injure you. Read SERVICE WARNINGS, before handling the air bag module.

Warning: Installing the driver-side air bag module when a service code 6 is not indicated can accidently deploy the air bag, which can cause serious injury. Carry out the proper troubleshooting procedures and verify that service code [6] is indicated before installing the driver-side air bag module.

1. Carry out the "Before Servicing" procedure under GENERAL PROCEDURES,

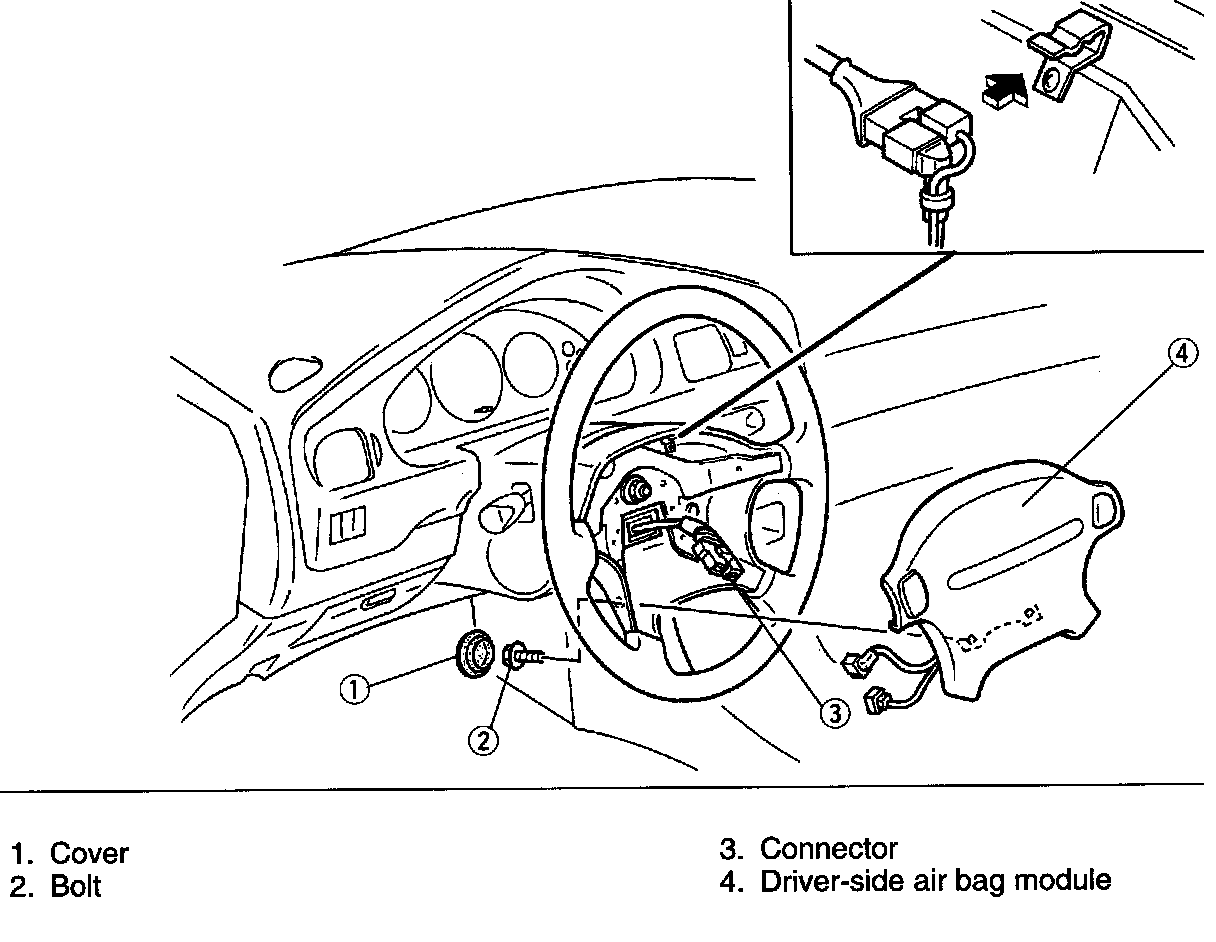

2. Remove in the order shown in the figure.
3. Install in the reverse order of removal, referring to Installation note.
4. Follow the troubleshooting flowchart, to verify that the air bag system is operating normally.






Bolts Installation note

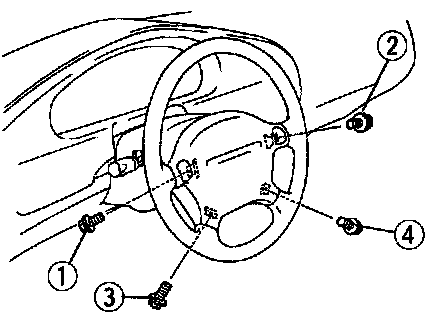

Tighten the bolts in the order shown in the figure.
Tightening torque: 7.9 - 11.7 N.m {80-120 kgf.cm , 70-104 in.lbf}
