Cooling Fan Relay Inspection

COOLING FAN RELAY INSPECTION
1. Remove the cooling fan relay.

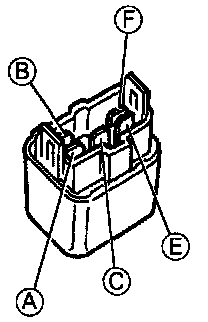

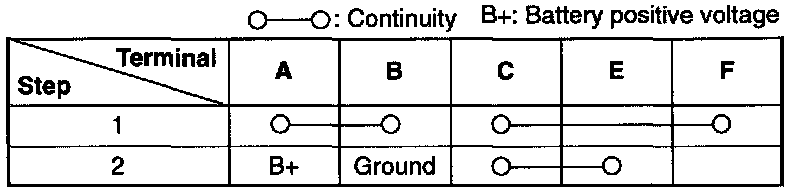

2. Apply battery positive voltage as per image and check continuity between terminals of the cooling fan relay by using ohmmeter.
3. If not as specified, replace the cooling fan relay.
