Vacuum Reservoir: Testing and Inspection




INSPECTION
- Remove the vacuum chamber.
- Visually inspect the outer surface for damage.

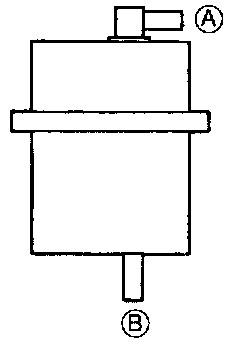

- Blow air from port A and verify that there is no airflow.
- Blow air from port B and verify that there is airflow.
- If not as specified, replace the vacuum chamber.
