Fuel Cut Control Inspection

FUEL CUT CONTROL INSPECTION:

FUEL CUT CONTROL INSPECTION
1. Warm up the engine to normal operating temperature.
2. Turn off the NC switch.
3. Connect the Special Service Tools (SST)s New Generation Star (NGS) tester to the data link connector-2.
4. Select the PID/DATA MONITOR AND RECORD function on the NGS display.
5. Select the "RPM".

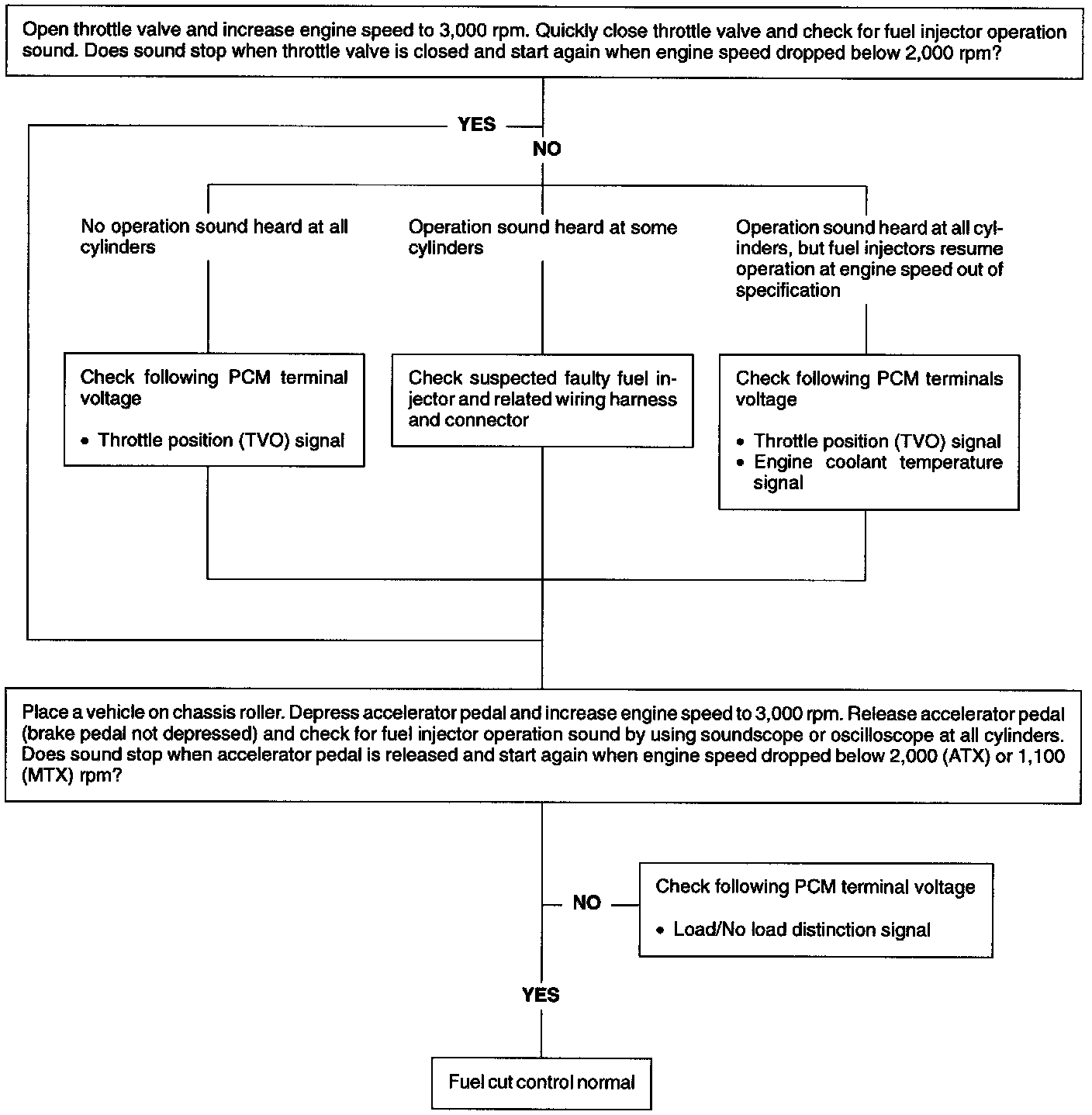

6. Using a soundscope, listen for the fuel injector operation sound at all cylinders.
