Rollover Valve: Testing and Inspection

INSPECTION
- Remove the fuel tank.
- Remove the rollover valve.

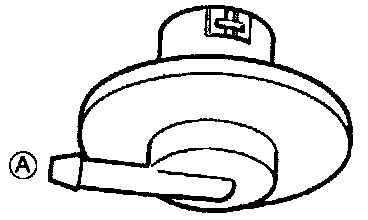

- Verify that air flows through the valve from port "A" when the valve is held as shown.




- Verify that no air flows through the valve from port "A" when the valve is held as shown.
- If not as specified, replace the rollover valve.
