Canister Drain Cut Valve (CDCV) Inspection







INSPECTION

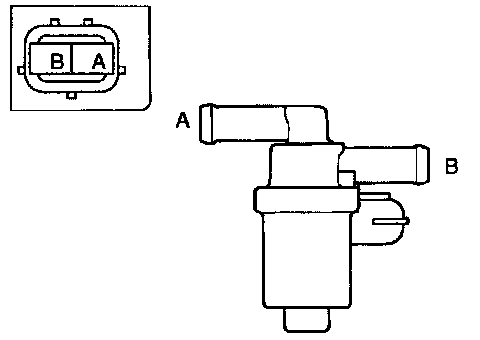

1. Remove the valve.

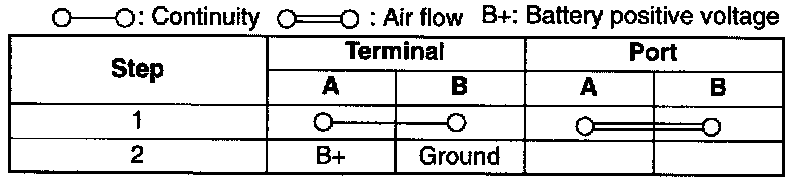

2. Check for air flow between ports of the solenoid valve.
3. If not as specified, replace the canister drain cut valve.
