Canister Purge Solenoid: Testing and Inspection
INSPECTION
1.
Remove the
purge solenoid valve
.
2.

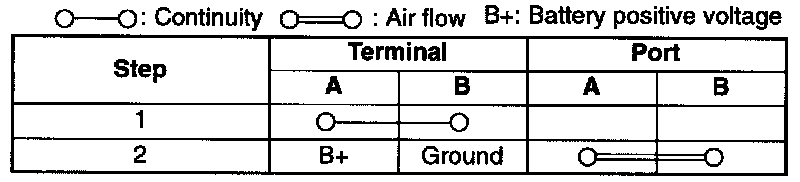

Check for air flow between ports of the solenoid valve.
3.
If not as specified, replace the
purge solenoid valve
.
