Home >> Mazda >> 1996 >> Protege L4-1839cc 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> System Diagram >> B-2C

B-2C

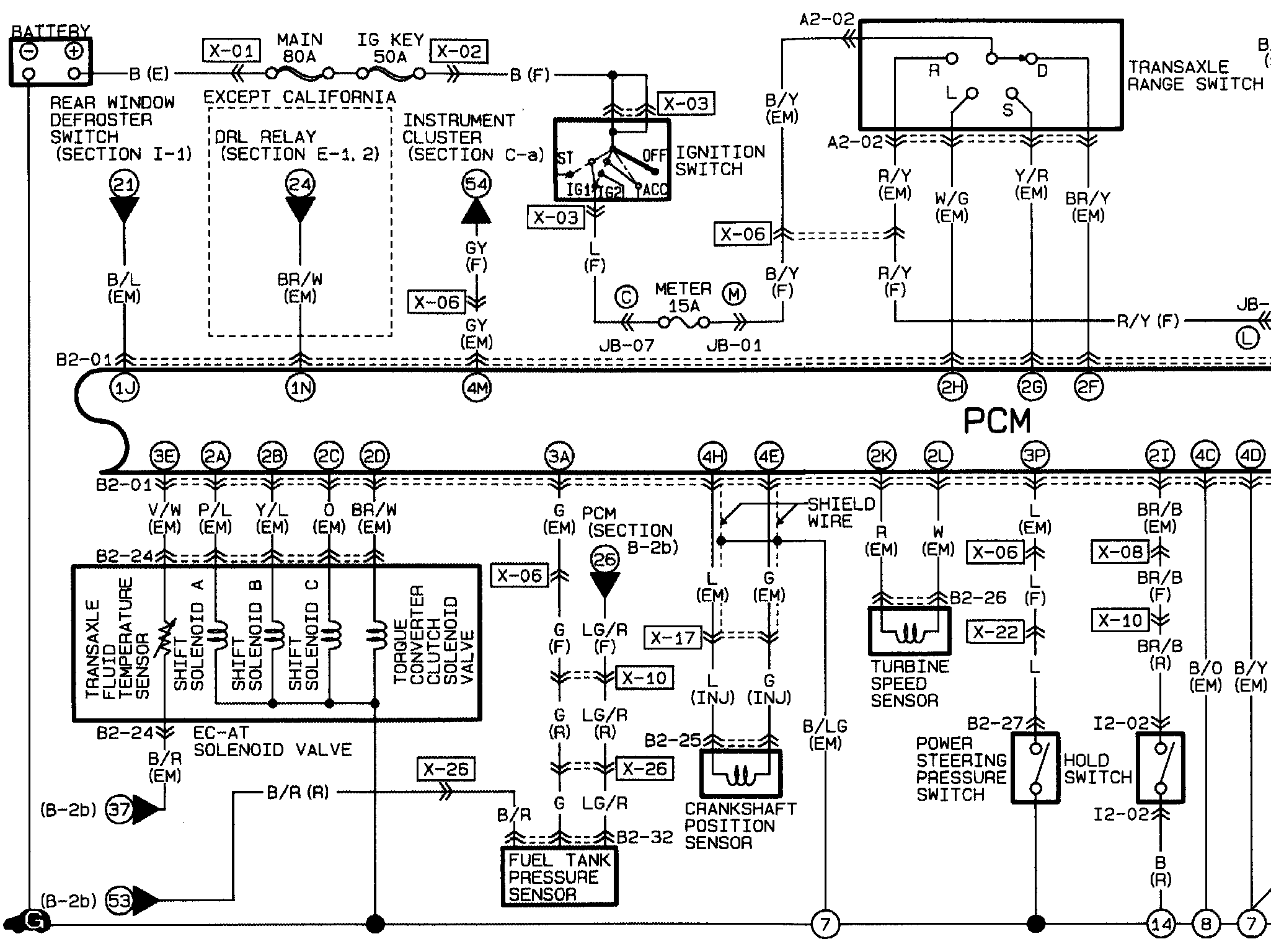

��FEngine Control System, EC-AT Control System B-2C:
