Rear

REAR DISC PLATE

Disc Plate Thickness




1. Measure the thickness of the disc plate.

Standard: 9 mm {0.3543 in}
Minimum: 7 mm {0.2756 in}
Minimum thickness after machining by using a brake lathe on-vehicle: 7.8 mm {0.3071 in}

Caution: Runout will increase if the machining is performed off-vehicle.

2. If the thickness is not within the specifications, replace the disc plate.


Disc Plate Runout
1. Verify that there is no looseness in the wheel bearing.

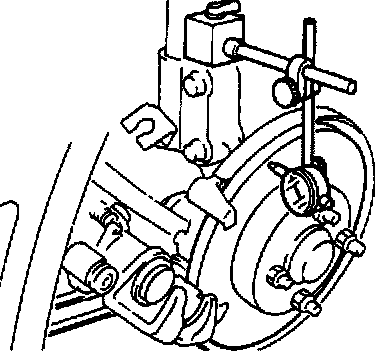

2. Measure the runout at the outer edge of the contact surface of the disc pad.

Runout: 0.5 mm {0.002 in} max.

3. If the runout is not within the specification, repair or replace the disc plate.
