Antilock Brakes /Traction Control System

Refer to Fig. 48 for an example of the Malfunction Indicator Lamp (MIL) diagnostic trouble code output or to Fig. 49, for an example of voltmeter diagnostic output. If any diagnostic trouble codes have been stored, refer to Fig. 50 and 51 for correlations between diagnostic trouble code output variables and possible causes; then, if necessary, proceed to the diagnostic flowcharts, Fig. 52 through 57, as directed by diagnostic trouble codes.

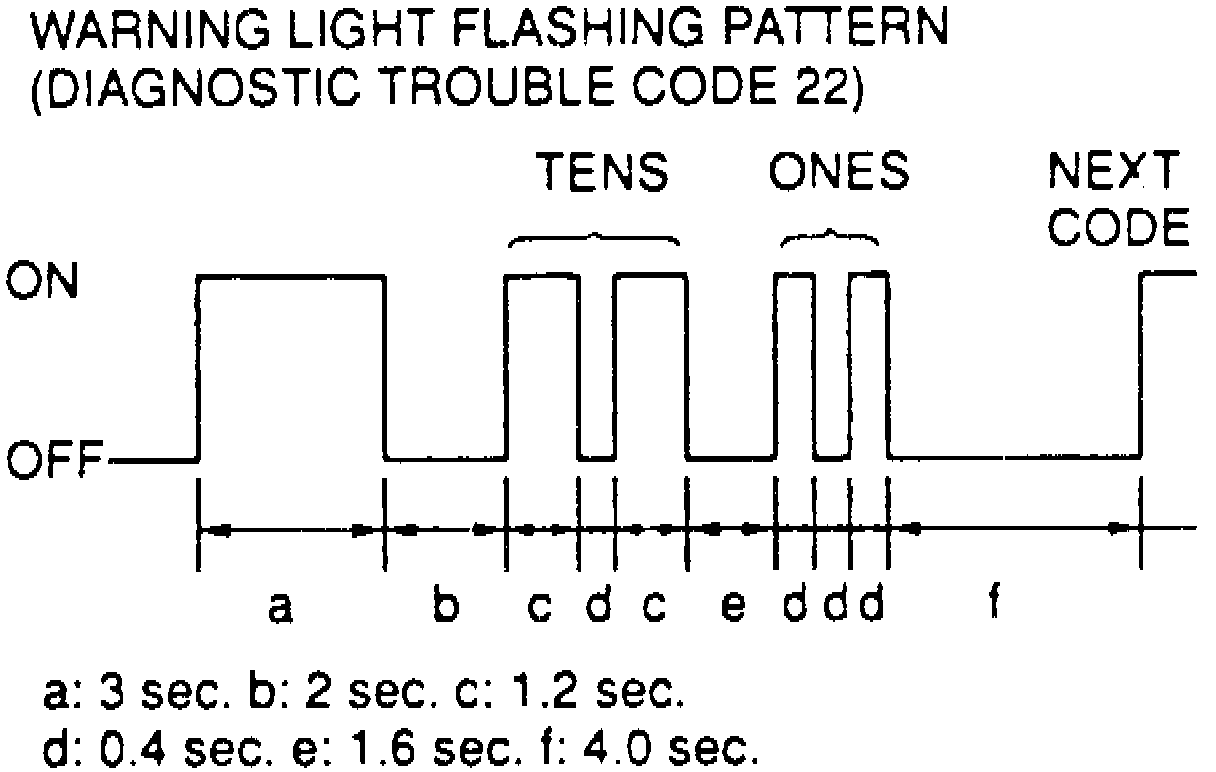

Fig. 48 MIL Diagnostic Trouble Code Output:

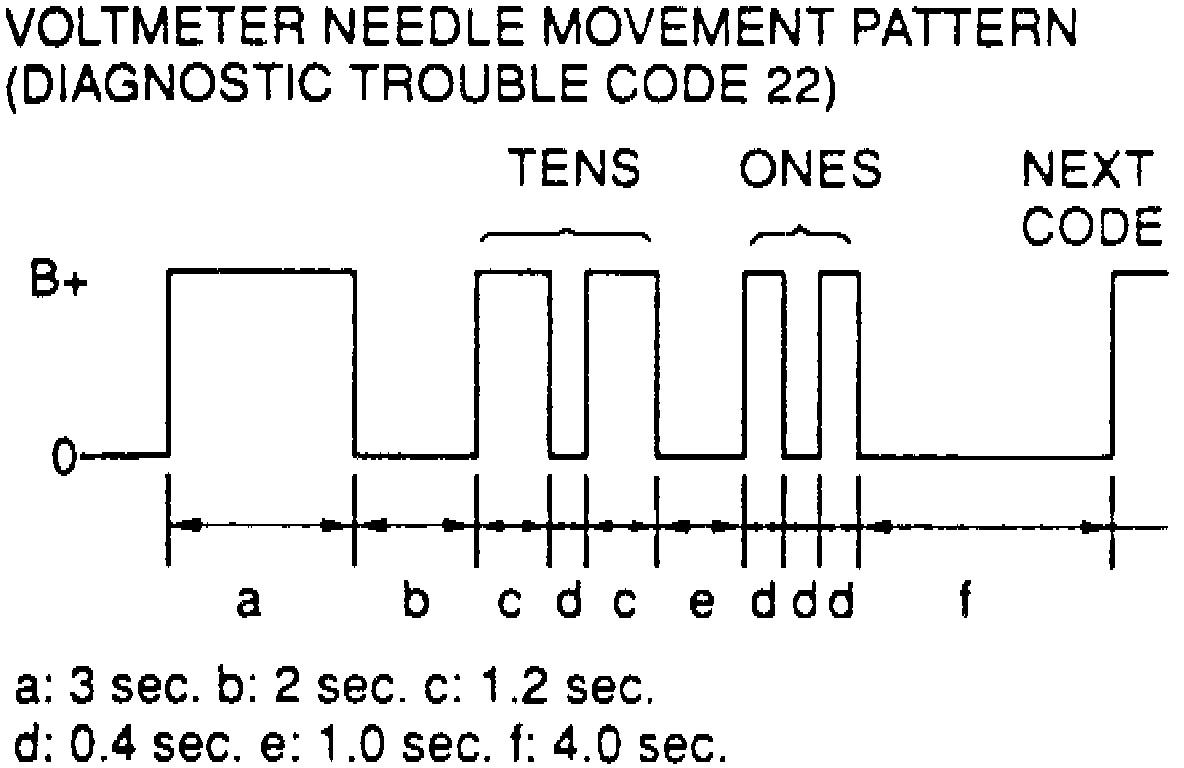

Fig. 49 Voltmeter Diagnostic Trouble Code Output:

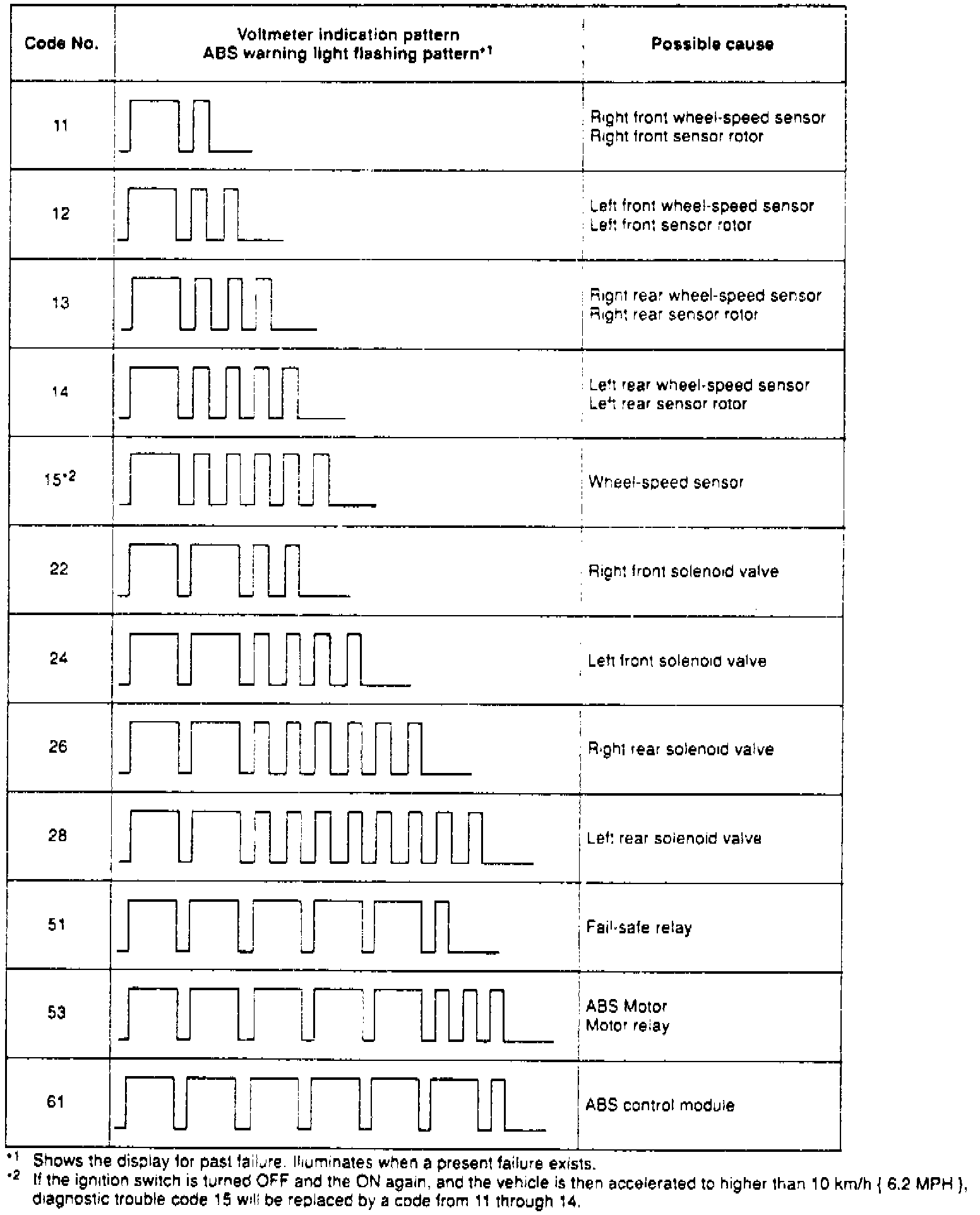

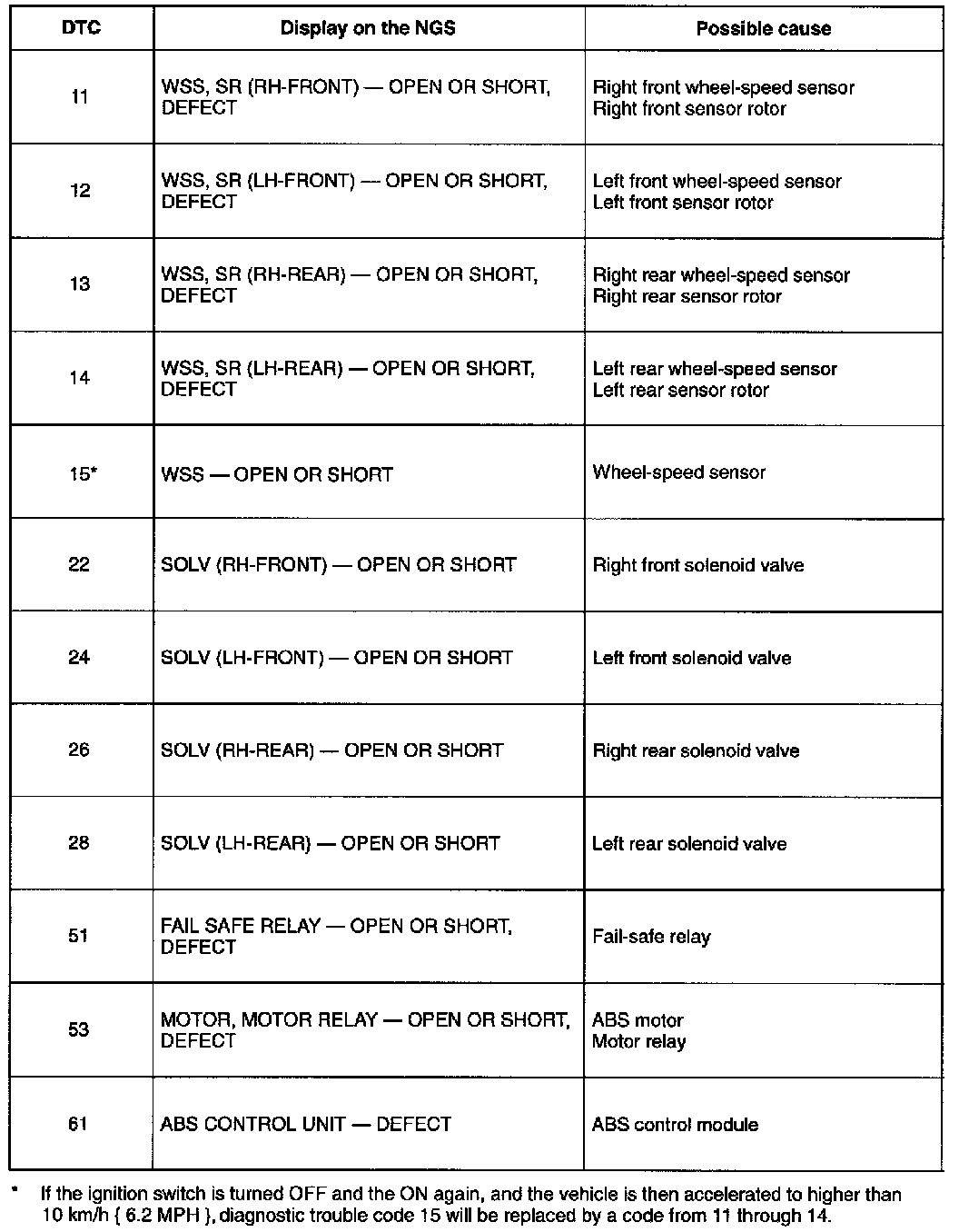

Fig. 50 Diagnostic Trouble Code Chart:

Fig. 51 Diagnostic Trouble Code Chart:

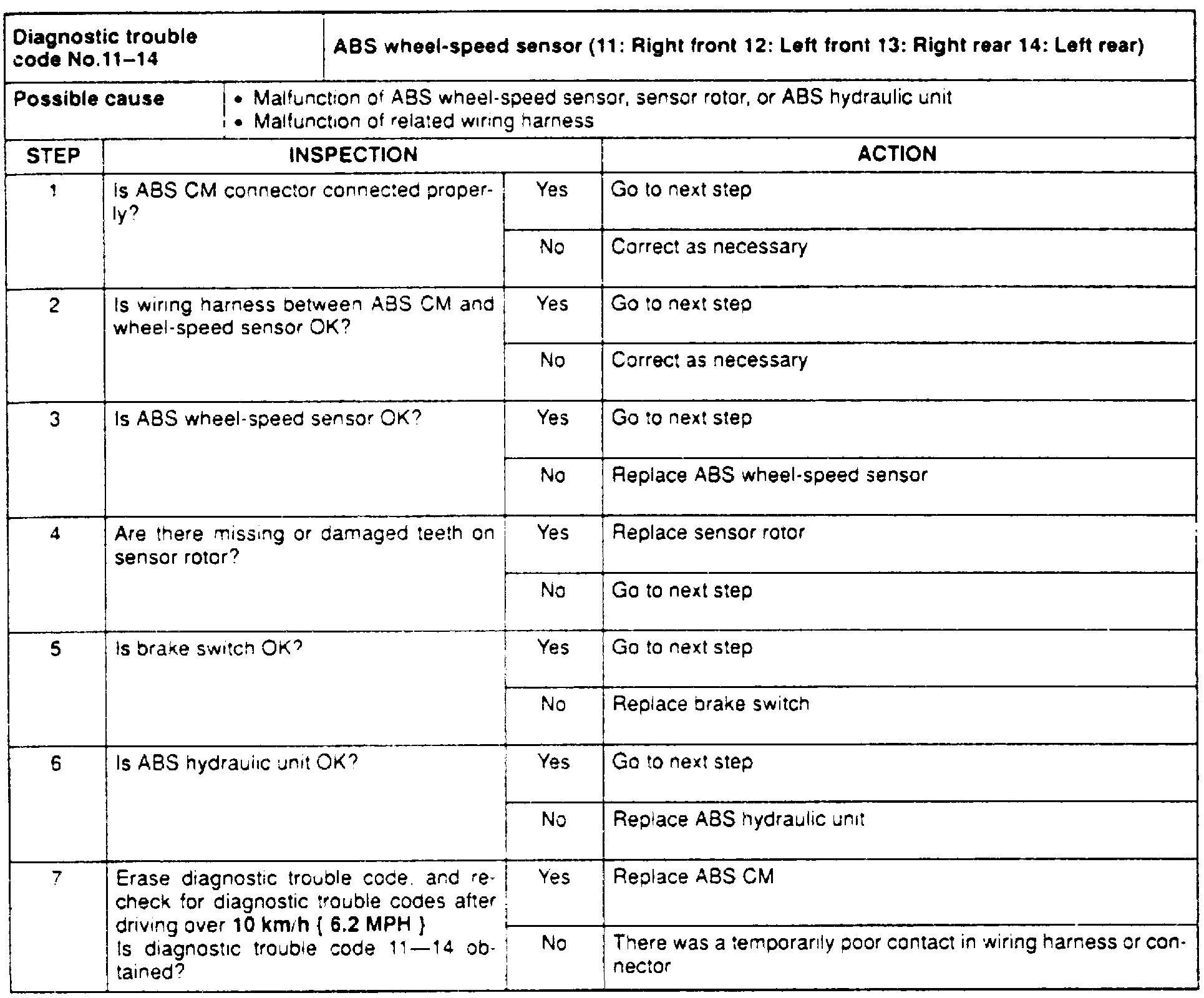

Fig. 52 Codes 11,12,13 & 14: ABS Wheel Speed Sensor:

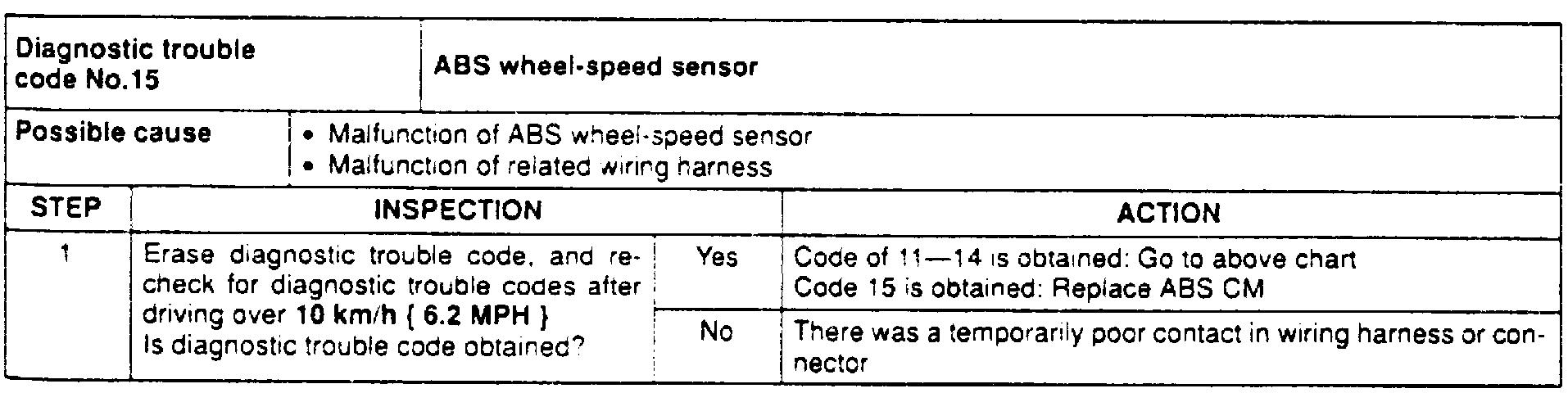

Fig. 53 Code 15: ABS Wheel Speed Sensor:

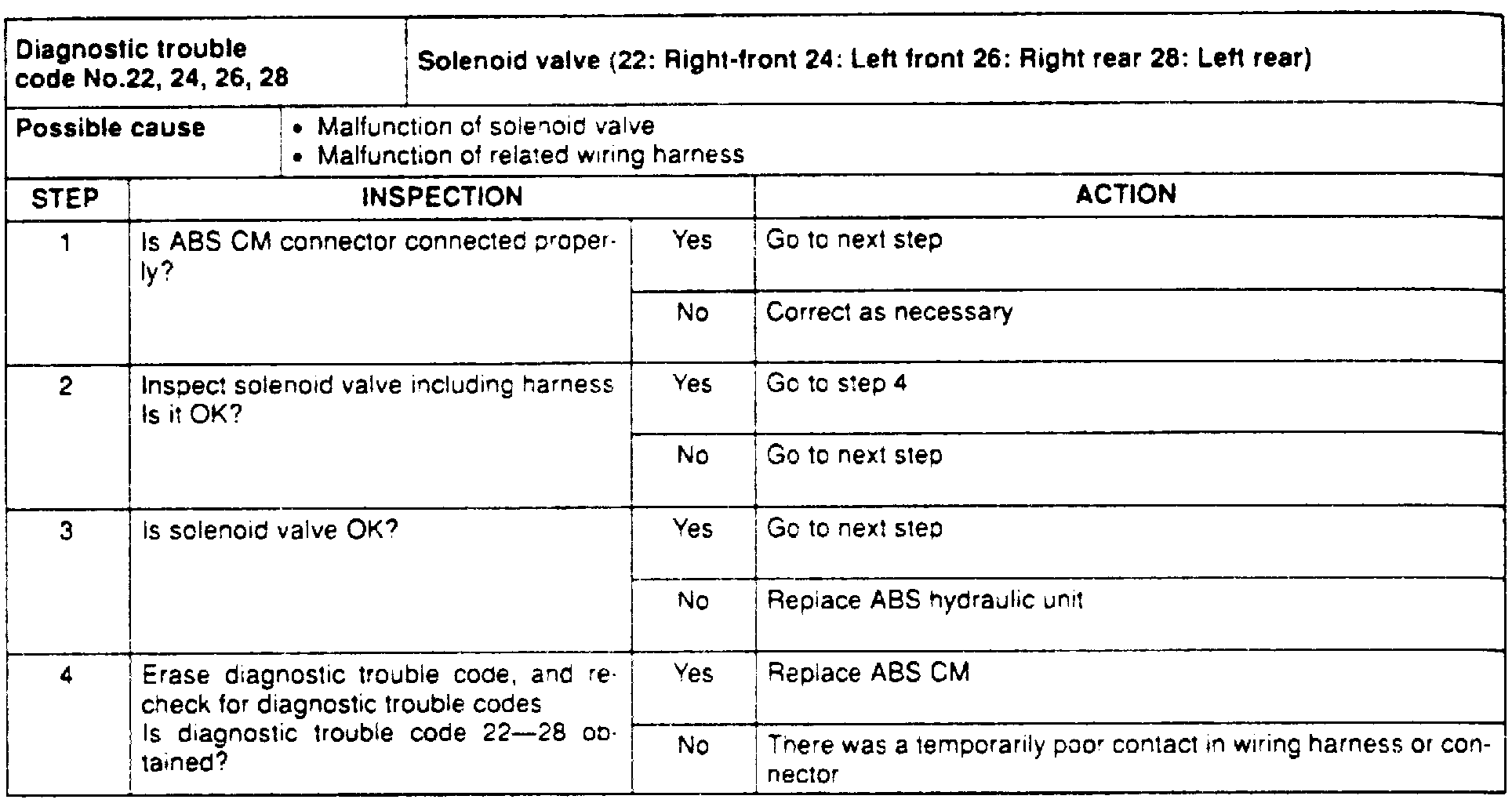

Fig. 54 Codes 22, 24, 26 & 28: Solenoid Valve:

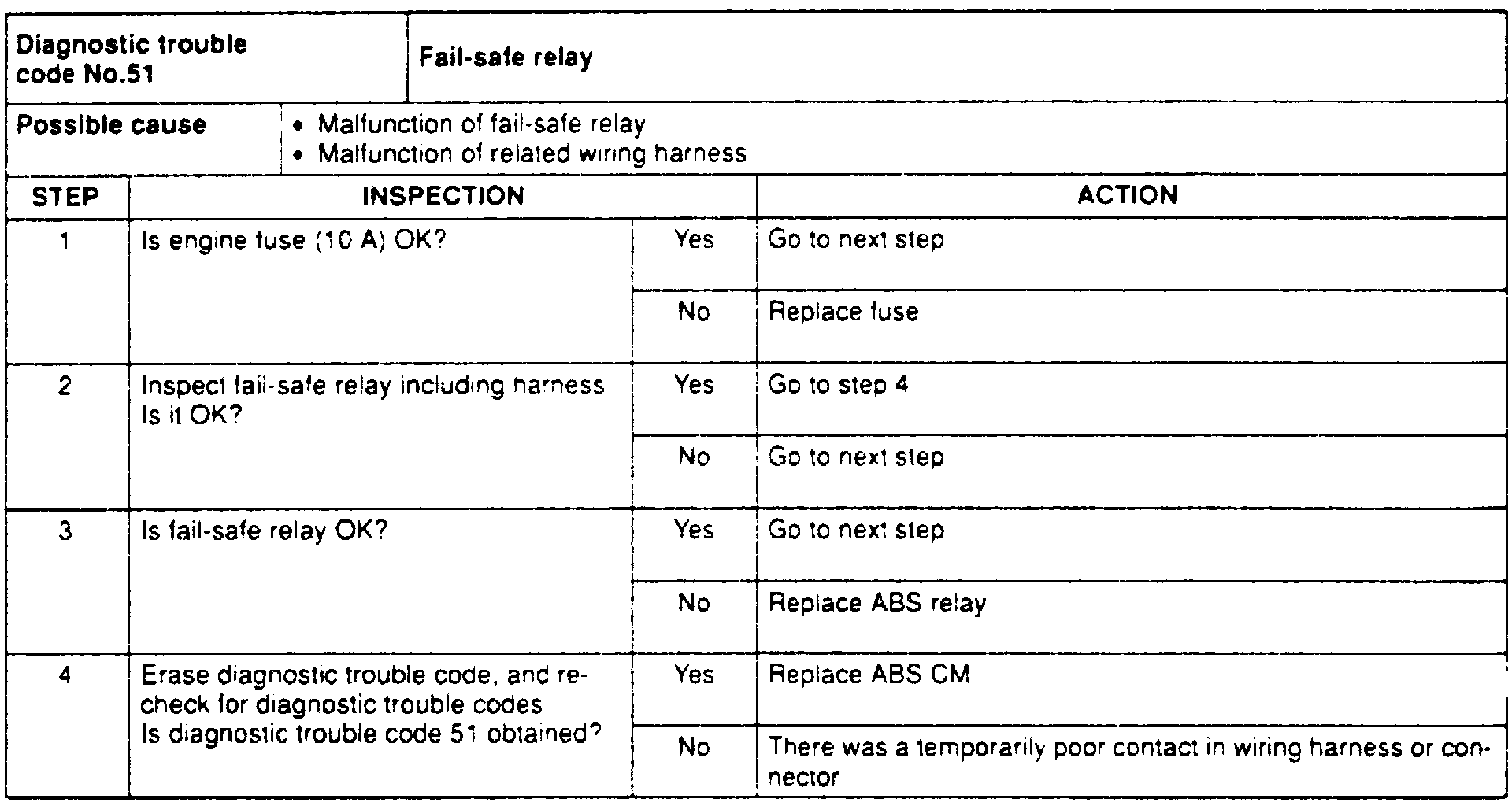

Fig. 55 Code 51: Fail-Safe Relay:

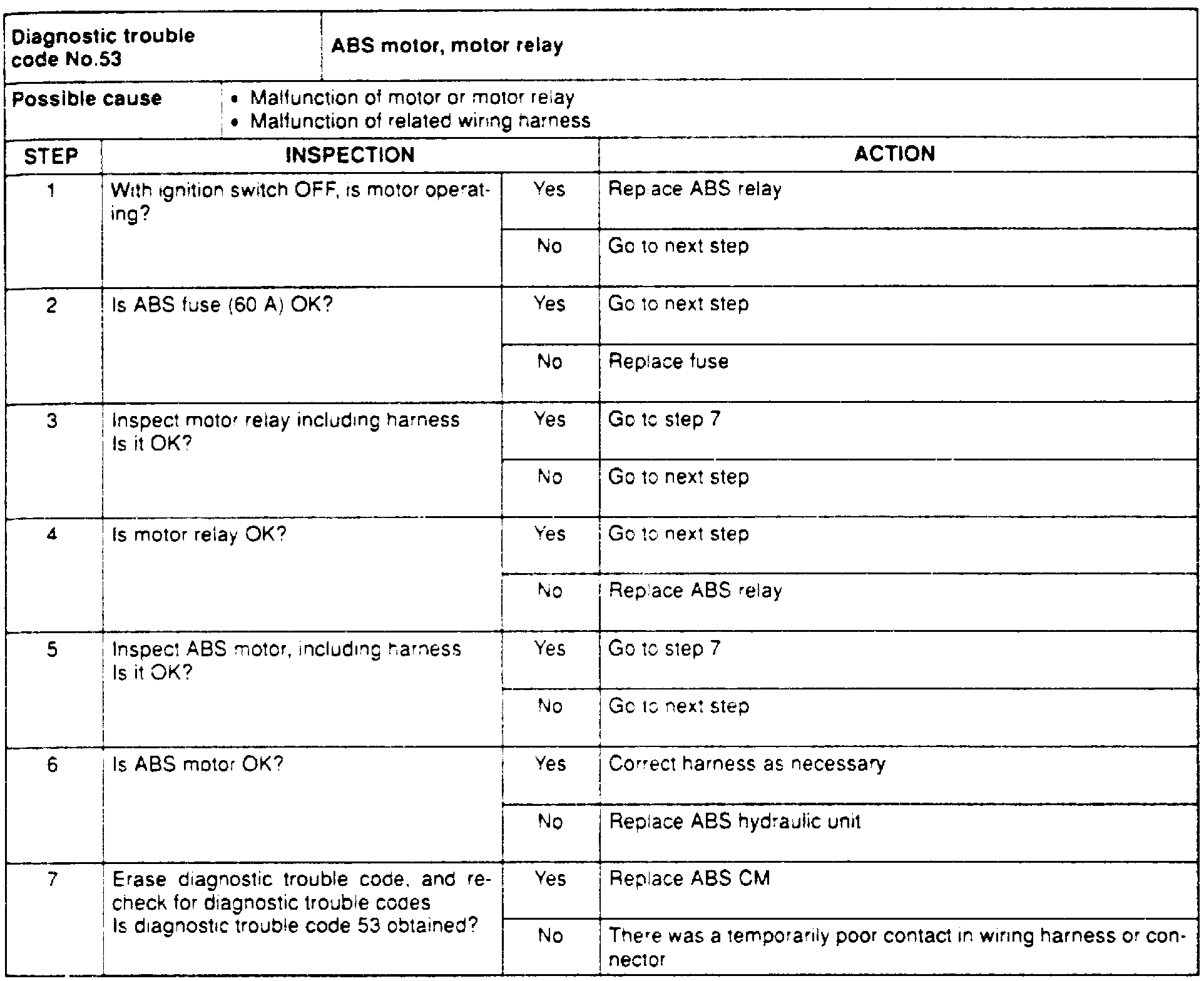

Fig. 56 Code 53: ABS Motor, Motor Relay:

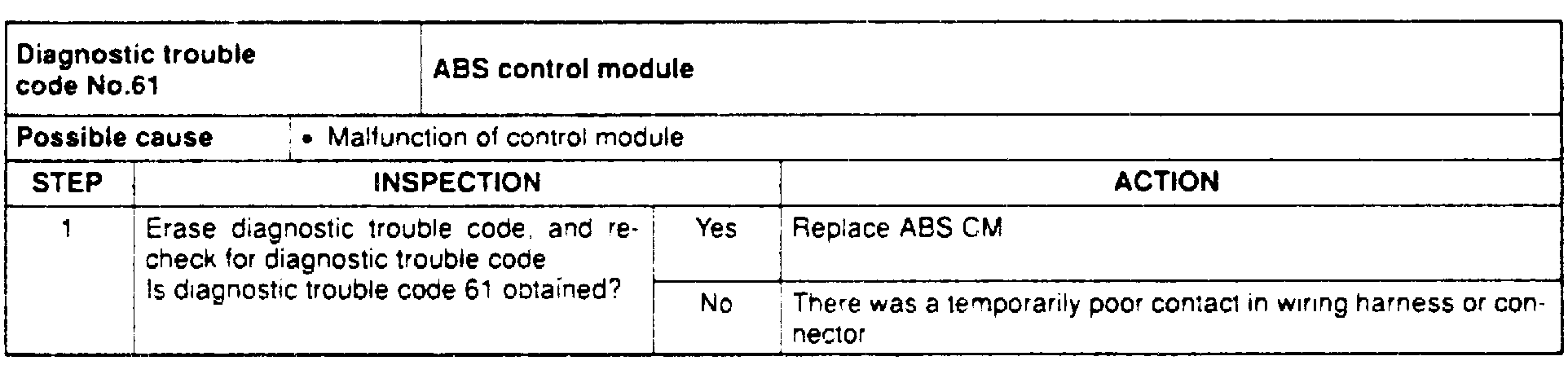

Fig. 57 Code 61: ABS Control Module:
