Shift Mechanism
1.

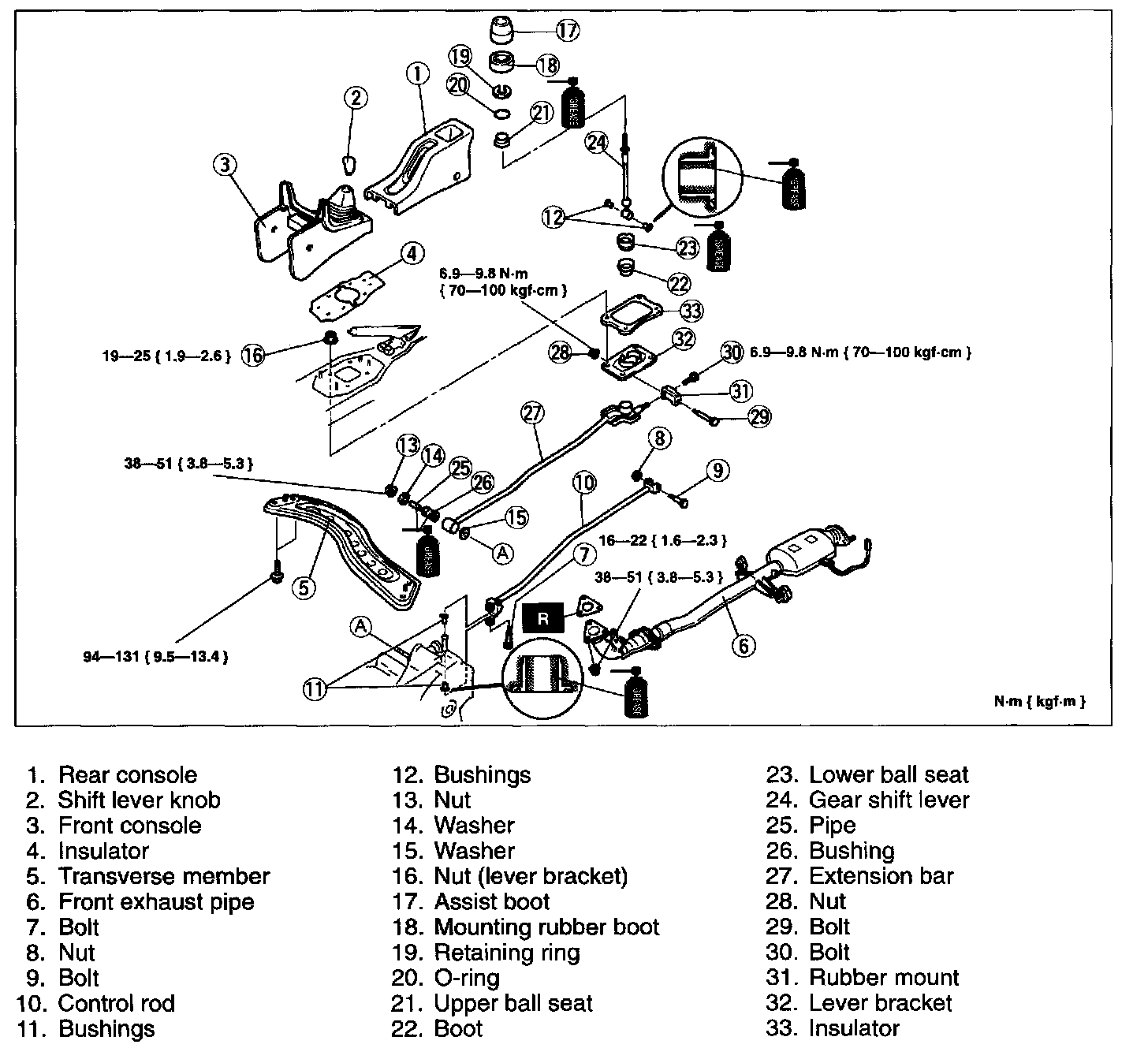

Disassemble in the order shown in the image.
2.
Inspect all parts and repair or replace as necessary.
3.
Assemble in the reverse order of disassembly.
