Shift Cable: Adjustments

1. Remove the battery, air cleaner component, and battery carrier.
2. Shift the selector lever to P position.

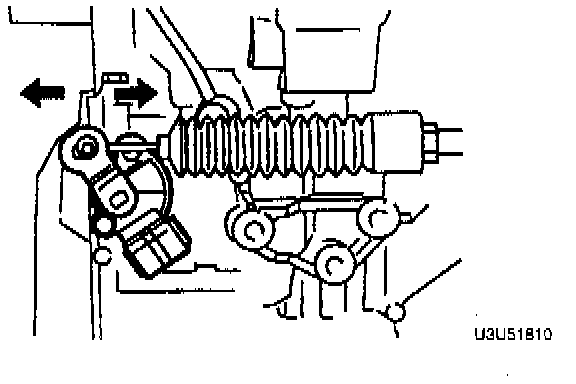

3. Loosen nut A as shown in the figure.
4. Push the selector cable in the direction of the arrow until it doesn't move any further.
5. Position the selector cable so that there is no load in the direction of the arrows, then tighten the nut to 16 - 22 Nm (12 - 16 ft. lbs.).
6. Install the battery carrier, air cleaner component, and battery.






7. Shift the selector lever from P position to 1 range, and make sure that there is no interference from other components in that area.
