Power Steering Pump: Service and Repair

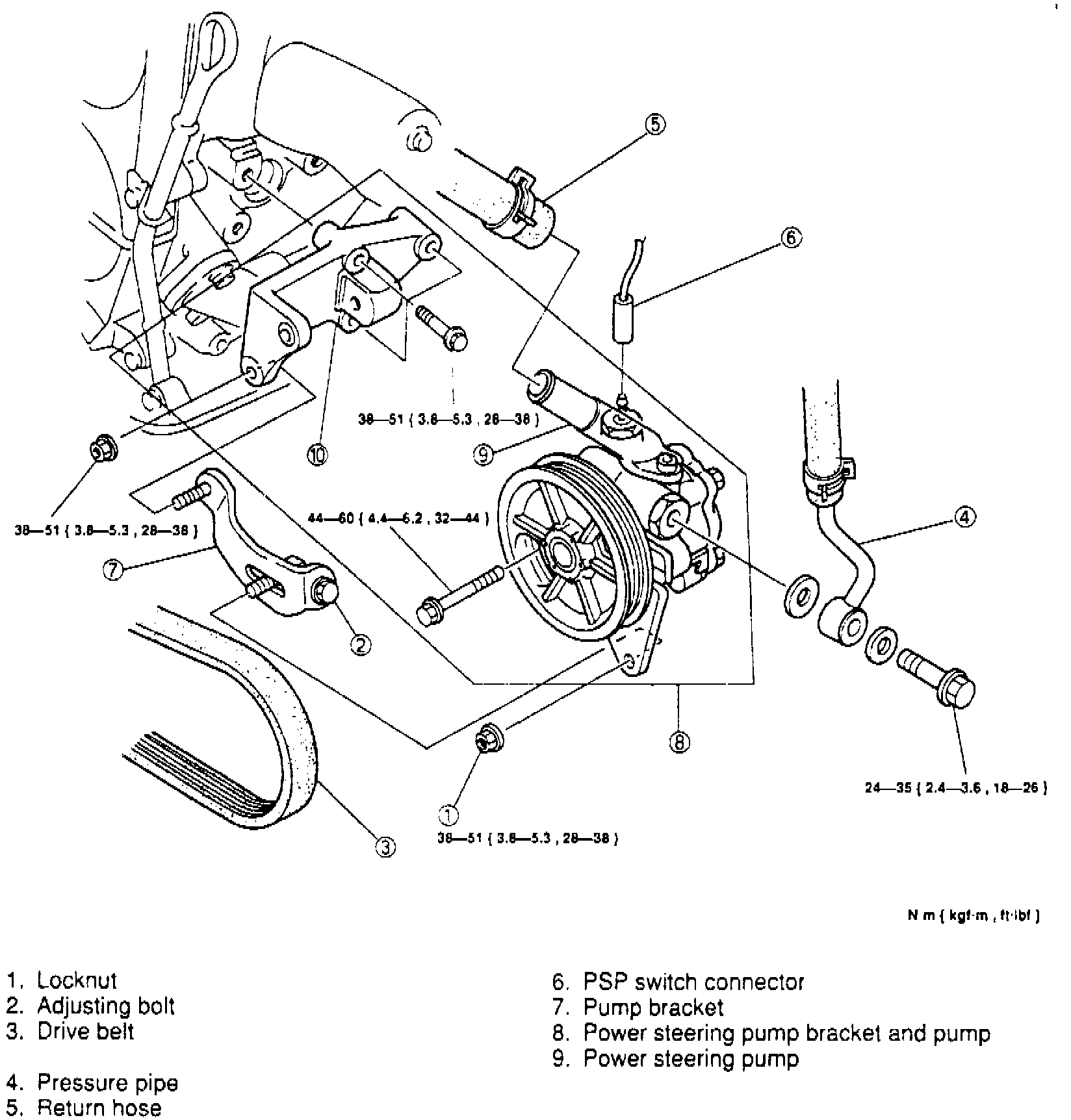

Fig. 26 Steering Pump Replacement:

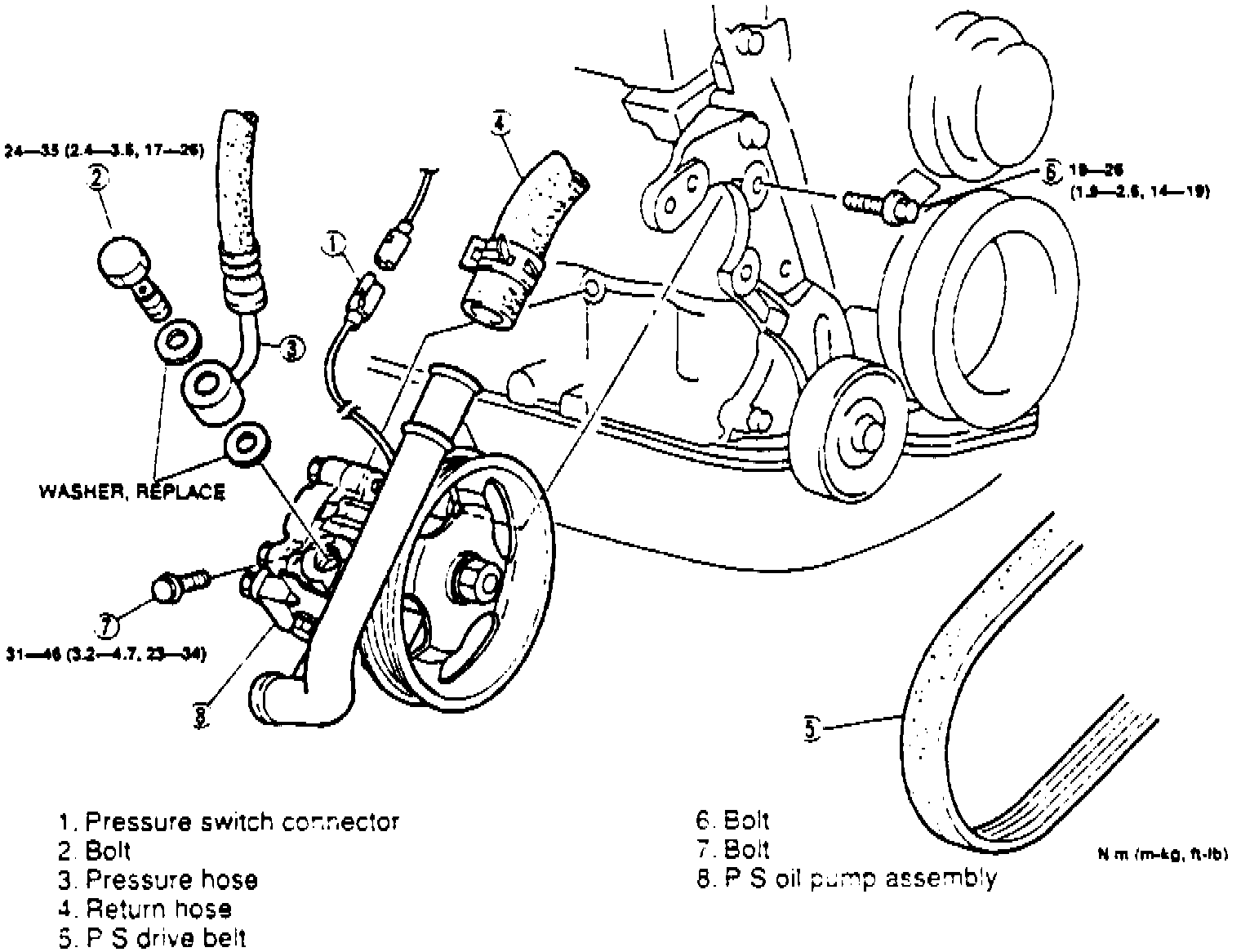

Fig. 27 Steering Pump Replacement:

Fig. 28 Steering Pump Replacement:

1. Remove steering pump in numbered sequence shown in Figs. 26 through 28.
2. Install steering pump reversing numbered sequence shown in Figs. 26 through 28.
