Passenger Side

PASSENGER-SIDE AIR BAG MODULE
Removal/Installation

Warning: Handling the air bag module improperly can accidently deploy the air bag, which may seriously injure you. Read SERVICE WARNINGS, before handling the air bag module.

Warning: Installing the passenger-side air bag module when a service code [7] is not indicated can accidently deploy the air bag, which can cause serious injury. Carry out the proper troubleshooting procedures and verify that service code [7] is indicated before installing the passenger-side air bag module.

1. Carry out the "Before Servicing" procedure under GENERAL PROCEDURES.
2. Remove the glove compartment cover.






3. Remove in the order shown in the figure.
4. Install in the reverse order of removal.
5. Follow the troubleshooting flowchart, to verify that the air bag system is operating normally.

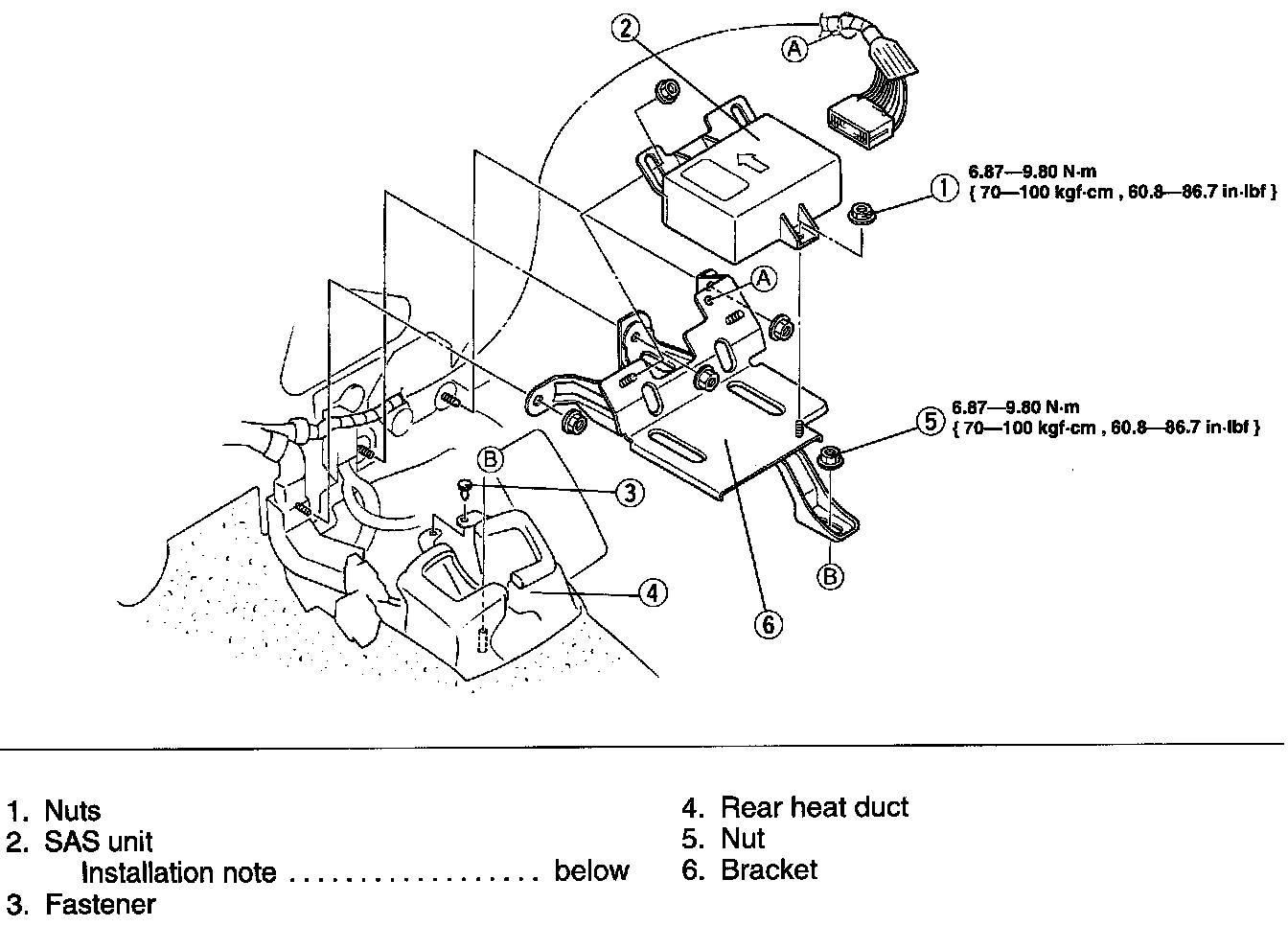

SAS UNIT
Removal/Installation

Warning: Handling the SAS unit improperly can accidently deploy the air bags, which may seriously injure you. Read SERVICE WARNINGS, before handling the SAS unit.
1. Carry out the "Before Servicing" procedure under GENERAL PROCEDURES,
2. Remove the heater unit. Heating and Air Conditioning See Heater Core, Service and Repair.






3. Remove in the order shown in the figure.
4. Install in the reverse order of removal, referring to Installation note.
5. Follow the troubleshooting flowchart to verify that the air bag system is operating normally.
