Fuel Tank Pressure Release Valve: Testing and Inspection

INSPECTION
- Remove the TPCV.

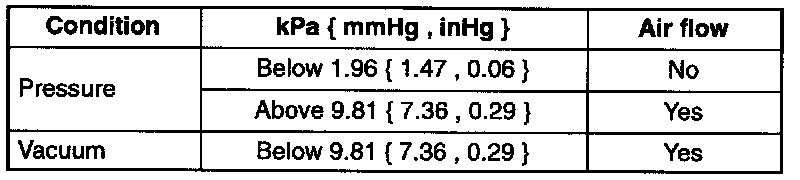

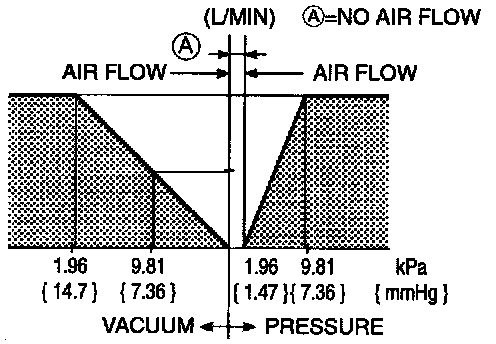

- Apply pressure or vacuum to port� of the valve by using a vacuum pump, and check for the air flow.

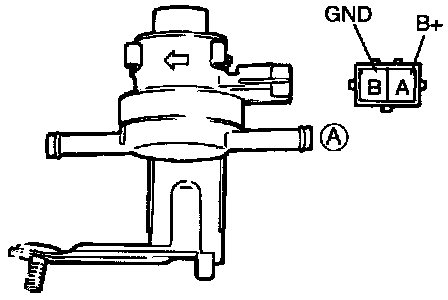

- Apply battery positive voltage to the valve connector and apply pressure to port "A", and verify that air flows smoothly.
- If not as specified, replace the TPCV.
