Accelerator Pedal: Service and Repair

REMOVAL/INSTALLATION

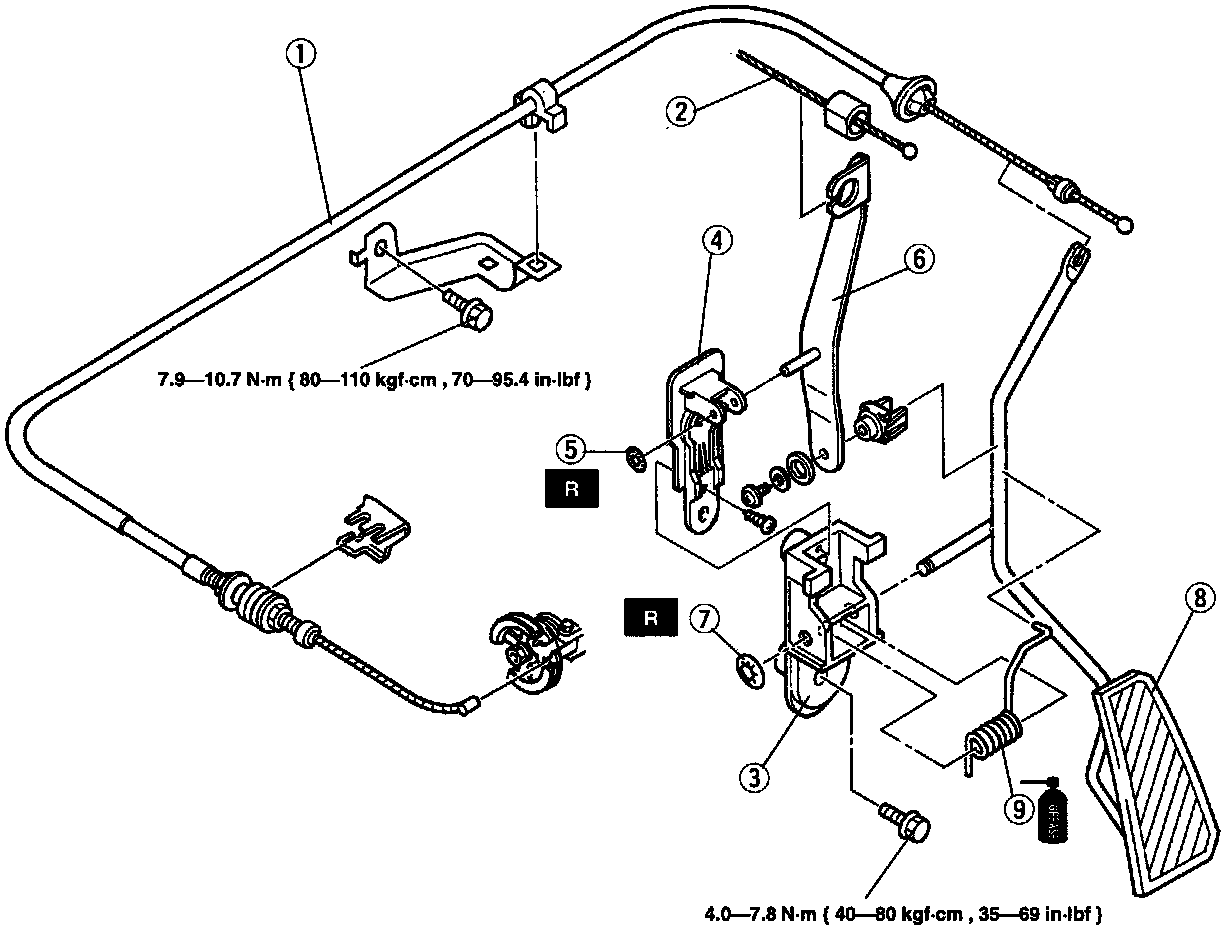

- Remove in the order shown in the figure.
- Install in the reverse order of removal.




1. Accelerator cable
2. Actuator cable (with cruise control)
3. Retainer
4. Retainer (with cruise control)
5. Snap ring (with cruise control)
6. Bracket (with cruise control)
7. Snap ring
8. Accelerator pedal
9. Return spring
