Accelerator Pedal: Adjustments

ACCELERATOR CABLE INSPECTION / ADJUSTMENT
1. Verify that the throttle valve is at the closed throttle position.

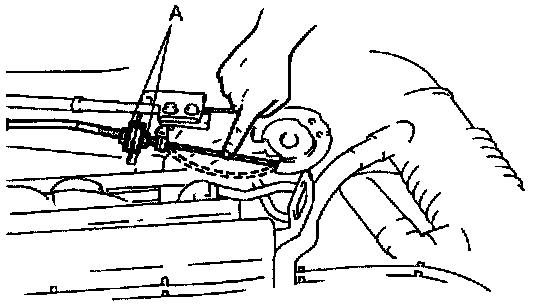

2. Measure the free play of the accelerator cable.

Free play: 1-3 mm (0.04-0.11 in.)

3. If not within the specification, adjust by turning lock nuts A.
