Instrument Cluster / Carrier: Service and Repair

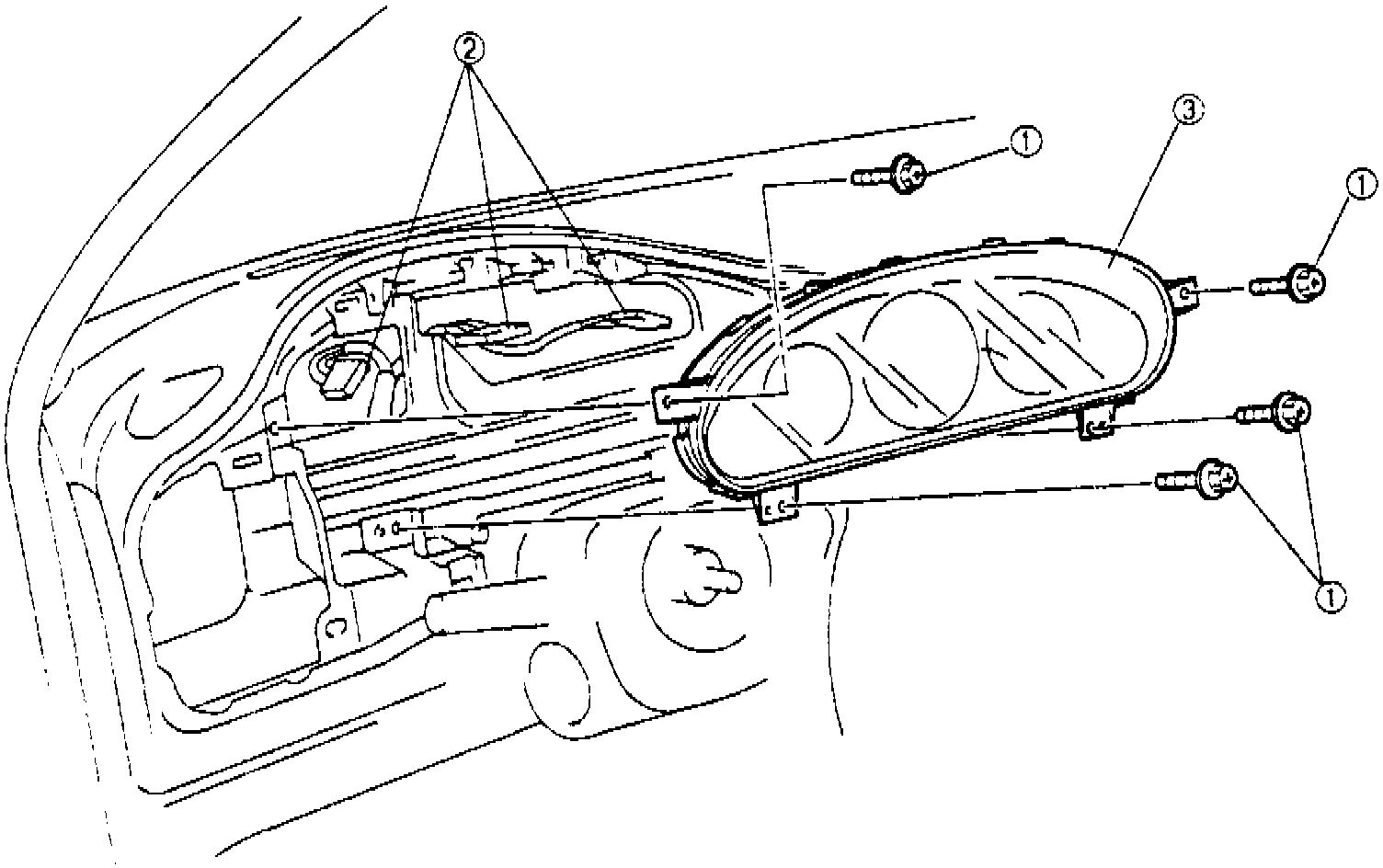

Fig. 2 Instrument Cluster Replacement:

1. Refer to Radio Coded Anti-Theft System under Technician Safety Information, then disconnect battery ground cable.
2. Refer to Figs. 2 for instrument cluster replacement procedure.
3. Reverse procedure to install.
