Radiator: Service and Repair

RADIATOR REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Drain the engine coolant.
3. Remove the radiator grille.

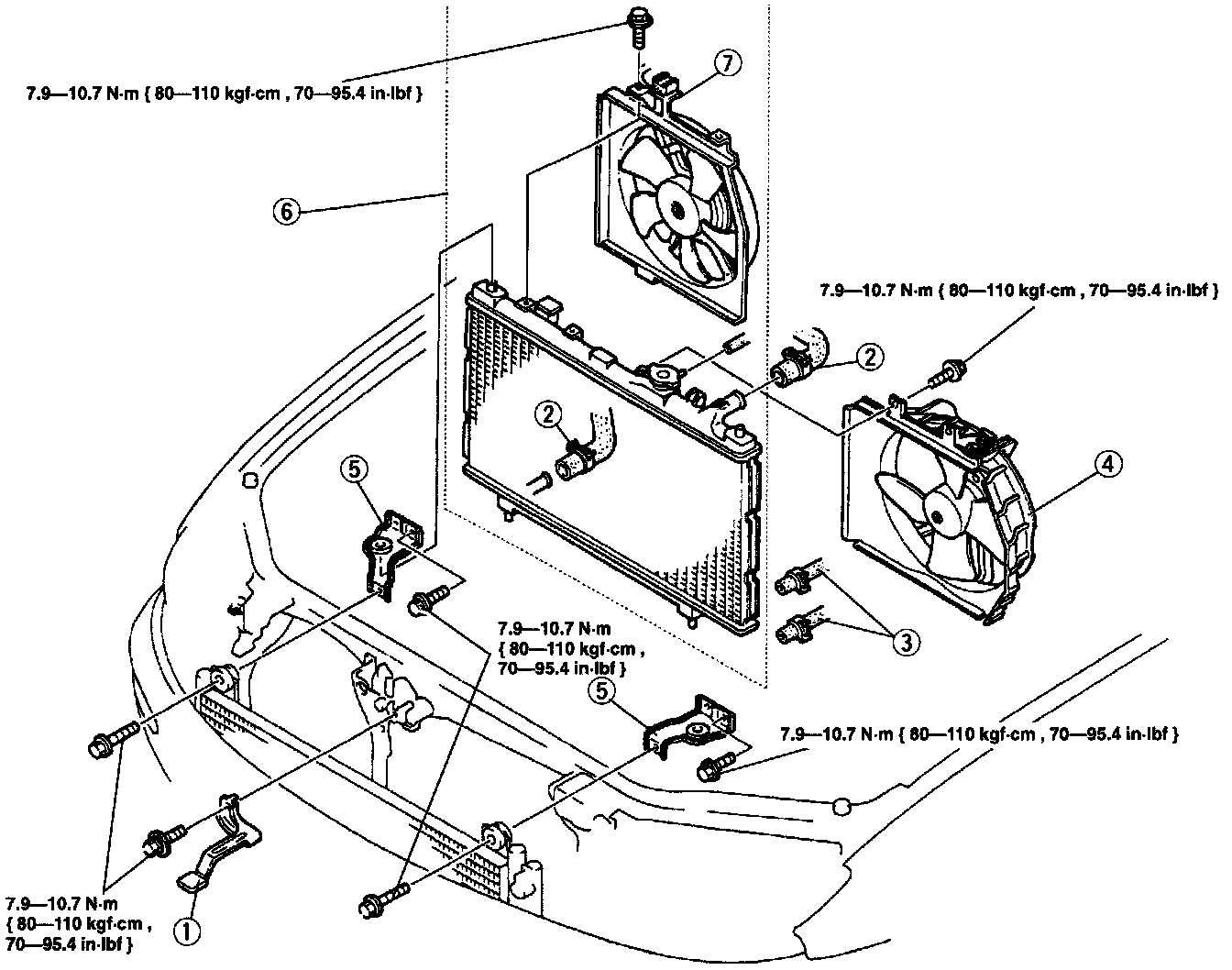

4. Remove in the order shown in the image, referring to Removal Note.
1. Safety lever
2. Radiator hose
3. Oil hose (ATX)
4. Cooling fan assembly
5. Radiator bracket
6. Radiator assembly
7. Condenser fan assembly (if equipped)

REMOVAL NOTE:
Cooling fan assembly
1. Move the cooling fan assembly to the engine side for easy removal of the radiator.
2. Remove the radiator, and then remove the cooling fan assembly.

5. Install in the reverse order of removal, referring to Installation Note.
6. Install the radiator grille.
7. Fill the radiator and radiator reservoir with the specified amount and type of engine coolant.
8. Check the ATF level and add ATF if necessary.
9. Check the ATF and coolant leaks.
