Home >> Mazda >> 1996 >> Protege L4-1.5L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Headlamp >> Without Air Bag System

Without Air Bag System

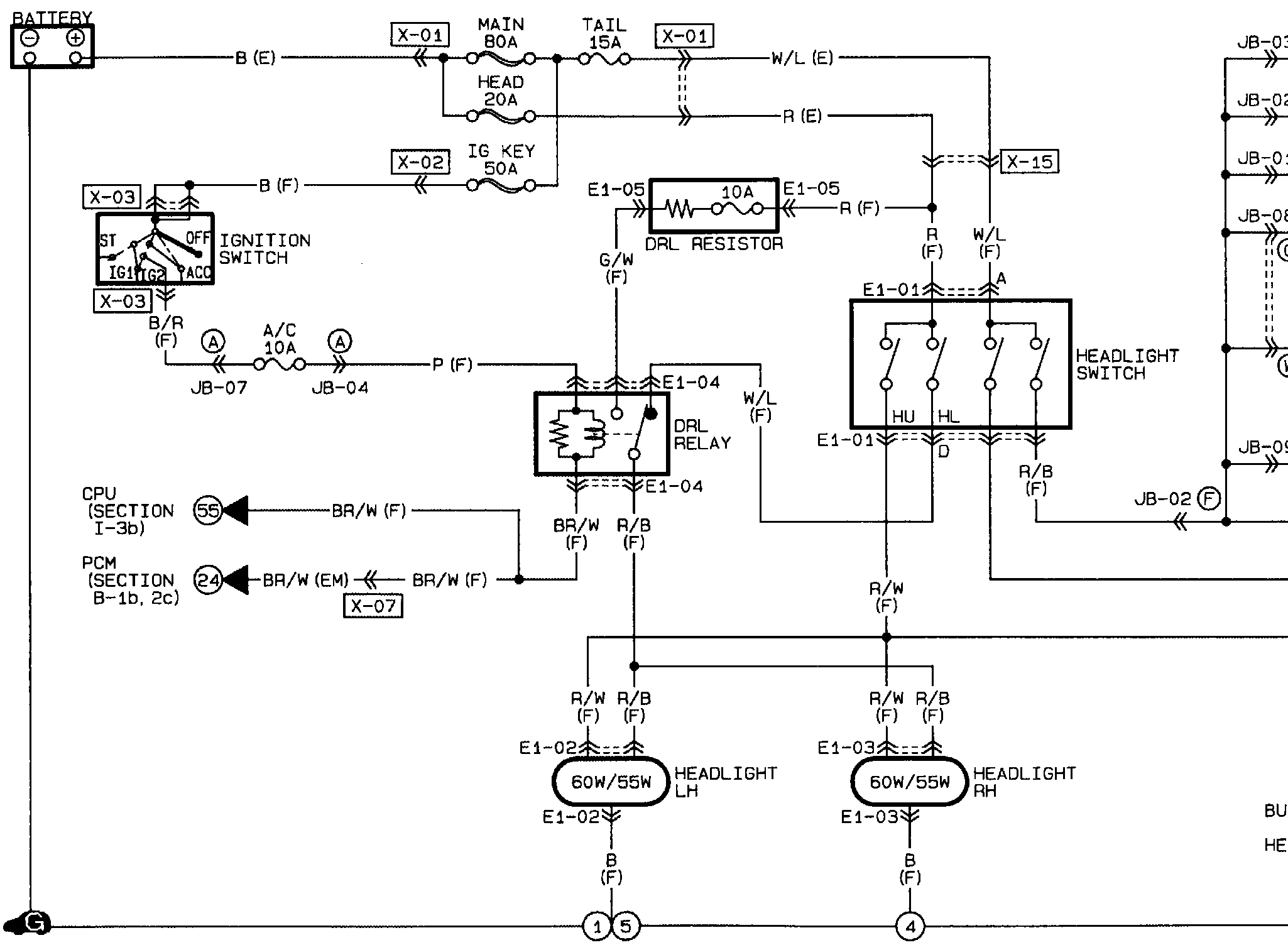

N�XvHeadlights, Daytime Running Lights (DRL) (Without Air Bag System):
