Mazda
>>
1996
>>
Protege L4-1.5L DOHC
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Hydraulic System
>>

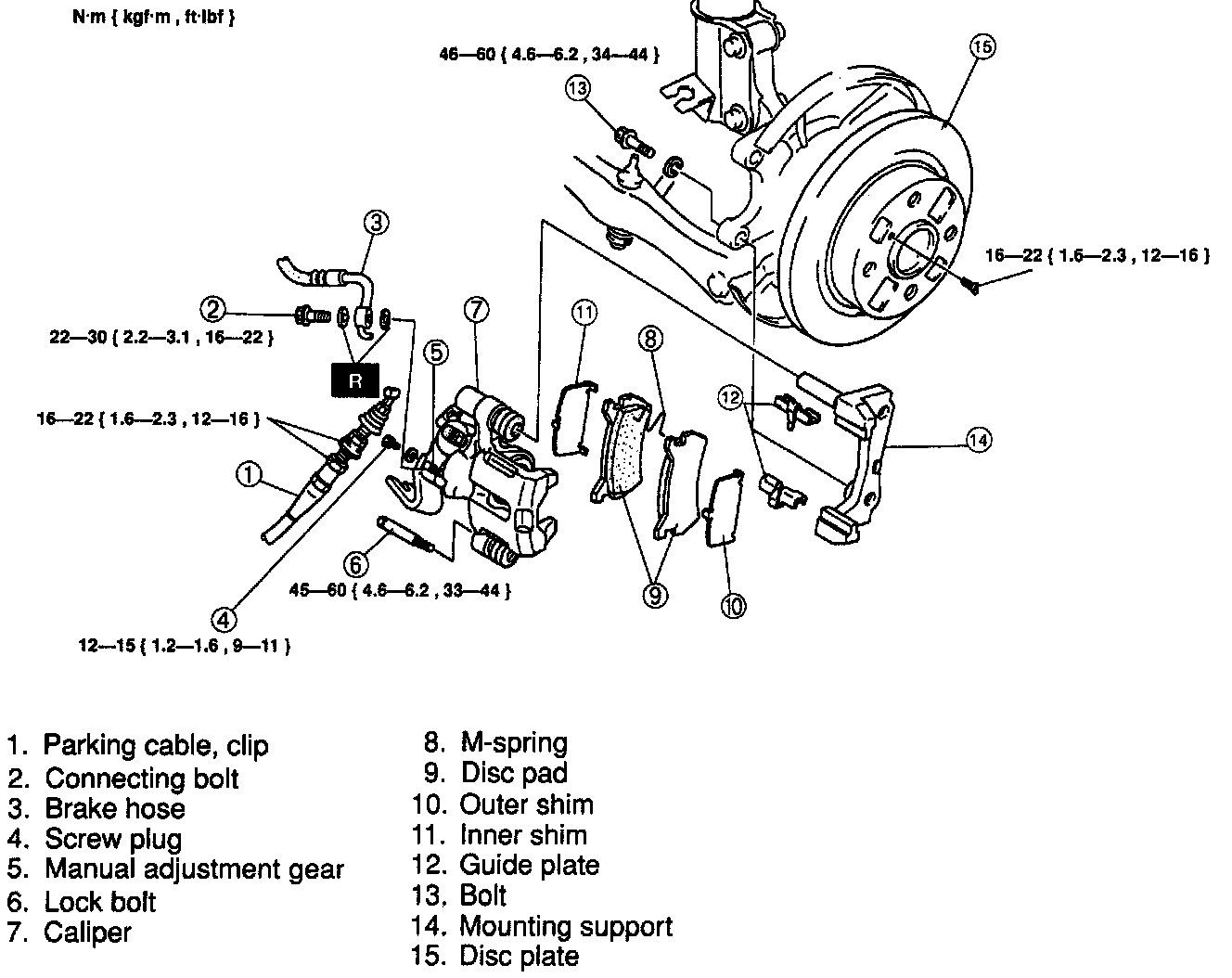

Brake Caliper
>>
Service and Repair
>>
Rear
>>
Removal/Installation
Removal/Installation
1.
Raise and support rear of vehicle.
2.
Remove tire and wheel assemblies.
3.
Disconnect and cap brake line.
4.
Remove caliper guide pin bolts.
5.
Remove caliper assembly from vehicle.
6.
Reverse procedure to install.
