Repair Procedure
REPAIR PROCEDURE1. Verify customer complaint.

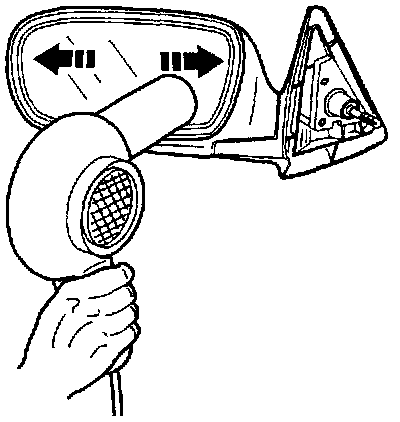

2. Heat the mirror glass and mirror holder enough to make it pliable.
Warning
^ Protective hand and eye wear should be worn.
Caution
^ Excessive heat will melt the mirror holder.

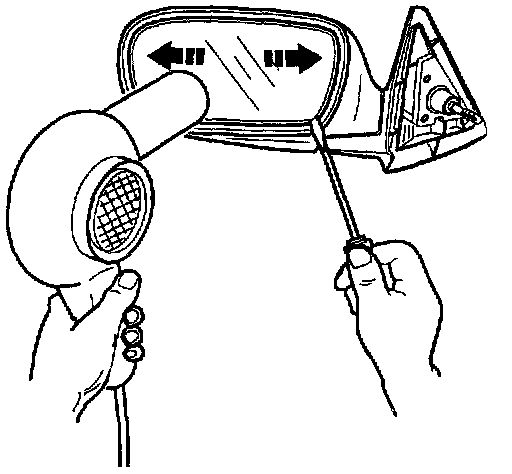

3. Insert a suitable tool between the mirror glass and the mirror holder.
4. While applying a slight amount of pressure with the tool, heat the mirror glass until it becomes loose.
Caution
^ Only warm mirror glass enough to free it from the holder, excessive heat will melt the holder.
5. Allow mirror holder to cool then remove the remaining adhesive.

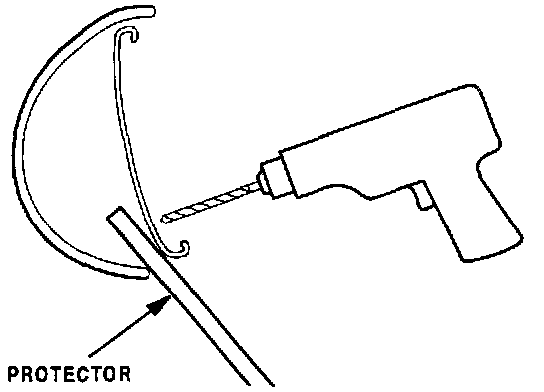

6. Insert a suitable protector between the mirror holder and the mirror housing.

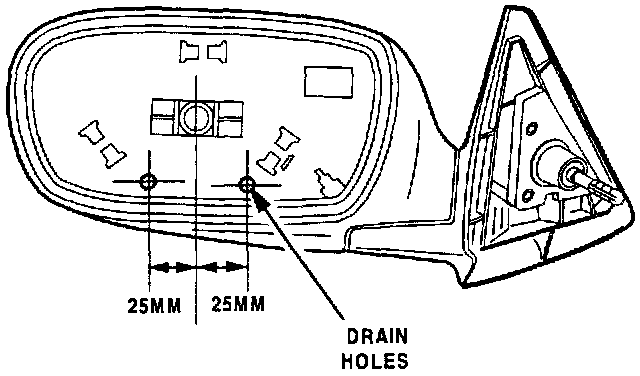

7. Drill two 5mm holes in the mirror holder in the locations shown.
8. Widen holes with a 7mm drill bit.
9. Remove debris around the front and back of the holes.
10. Slightly warm the mirror holder and the mirror glass.
Note
^ Remove any oil that is present on the mirror holder.
11. Install new mirror glass.
12. Verify repair.
