Oscilloscope Patterns and Waveforms

Inspection of Wave Form
1. Connect the oscilloscope to the powertrain control module at terminals:

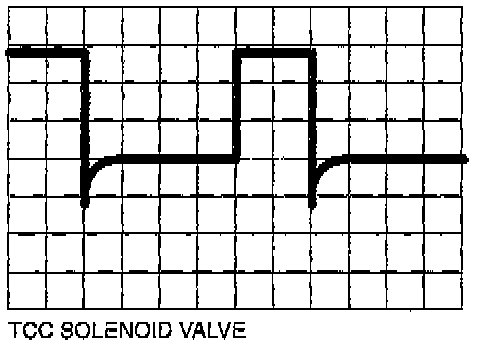

- 2C TCC Solenoid

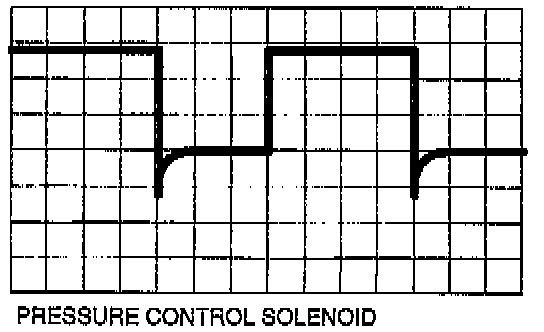

- 2H Pressure Control Solenoid
2. Inspect the wave forms as shown in the figures.
