Rear View Mirror - Loose
Bulletin No. 002/98Issued 02/23/98
Revised
Category
S (09)
Applicable Models
1995-96 Millenia
Subject
REAR VIEW MIRROR LOOSE
APPLICABLE MODEL(S)/VINS
All 1995-96 Millenia
DESCRIPTION
The rear view mirror may be loose. The cause may be a loose set screw or the holder may have been exposed to excessive force which may have deformed the holder.
Customers complaining of this concern should have the vehicle inspected and if necessary, repaired according to this bulletin.
REPAIR PROCEDURE

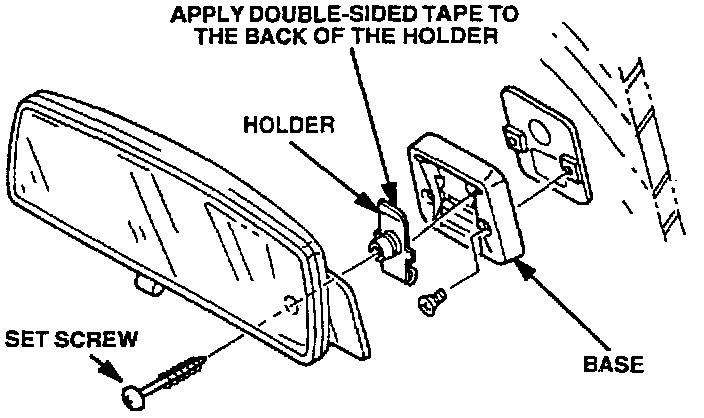

1. Remove the rear view mirror according to the Workshop Manual.
2. Inspect the set screw.
If loose, proceed to step 3.
If the set screw is tight, proceed to step 5.
3. Replace the holder and screw with new parts.
4. Apply double-sided tape to the back of the holder to secure the part in place during installation.
5. Install rear view mirror
6. Verify repair.
PART(S) INFORMATION
Part Number Description Qty.
TBY0-69-224 Holder and Screw 1
Note
^ The set screw has thread sealer applied.
WARRANTY INFORMATION
Note
^ This information applies to verified customer complaints on vehicles covered under normal warranty.
Warranty Type A
Symptom Code 73
Damage Code 9B
Part Number Main Cause TBY0-69-224
Quantity 1
Operation Number XX951XRX
Labor Hours 0.2
