Cylinder Head Bolts - Updated Design

Bulletin No.: 002/96
Issued: 04/25/96
Revised: 06/06/96

Category
B

Applicable Model/s
See Below

Subject:
CYLINDER HEAD BOLT CHANGE V-6 ENGINES ONLY

Note:
The VIN and specification information in this bulletin have changed. Please replace your original bulletin with this revised copy.

APPLICABLE MODELS
1995 626 / MX-6 equipped with 2.5L (KL) V-6 engine and a VIN of 1YVGE**D*S5361783 and higher. (Eng. Serial KL556012 and higher).
All Millenia with a 2.5L (KL) V-6 engine and a VIN of JM1TA221**S1134783 and higher (Eng. Serial KL556012 and higher) and 2.3L (KJ) engine and a VIN JM1TA22**T1203600 and higher.

DESCRIPTION

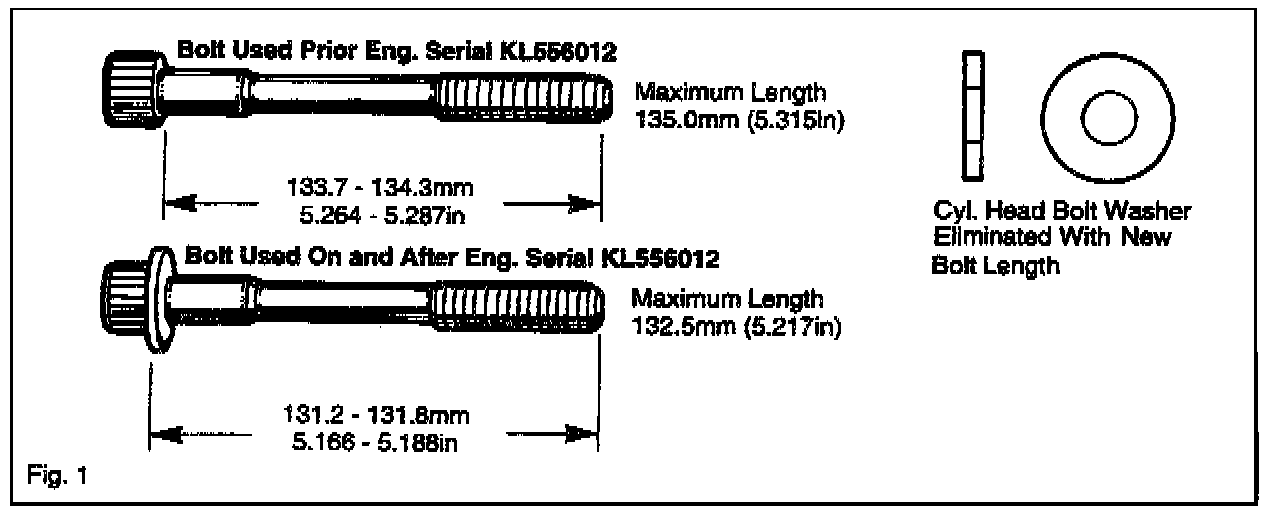

The cylinder head bolt length was reduced and the washer eliminated for the above engines. Refer to Fig. 1 for physical measurements.

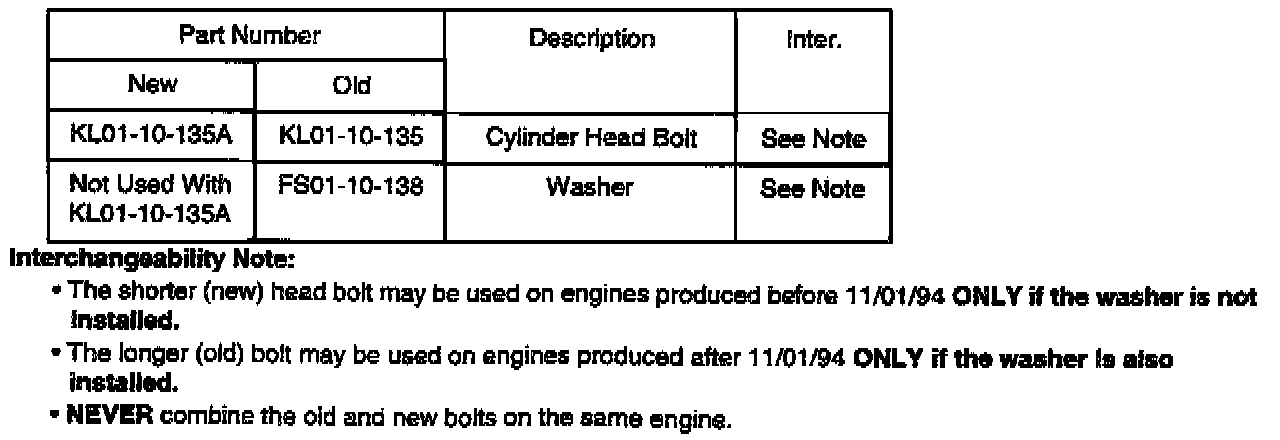

PARTS INFORMATION
