Console Center Panel - Parts Availability

Bulletin No. 010/98

Issued 05/20/98

Revised

Category
S (09)

Applicable Model/s
1995-96 Millenia

Subject
SERVICE PARTS AVAILABILITY - CENTER PANEL

APPLICABLE MODEL(S)/VINS
All 1995-96 Millenia

DESCRIPTION

The center panel has been recently established as a service part to reduce repair cost. Customers complaining of this subject should have their vehicle inspected and if necessary, a modified part installed.

REPAIR PROCEDURE

1. Verify customer complaint.

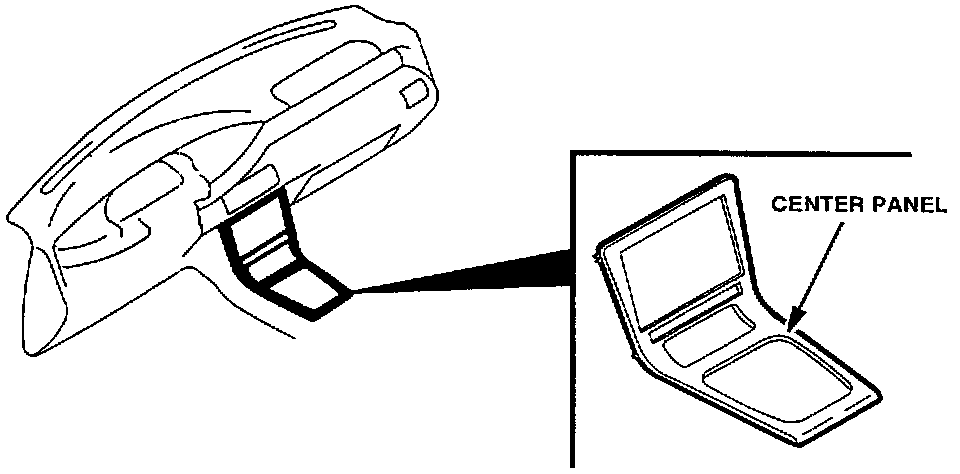

2. Replace center panel with modified part per Workshop Manual.

3. Verify repair.

PART(S) INFORMATION

Part Number Description Qty. Int.

T002 55 211A Center panel (real wood) 1 AN
T003 55 211 Center panel (plastic wood) 1 AN

Interchangeability Note:
"AN" means the new and old parts are fully interchangeable.

WARRANTY INFORMATION

Note
^ This information applies to verified customer complaints on vehicles covered under normal warranty.

Warranty Type A
Symptom Code 87
Damage Code 9A
Part Number Main Cause See PART(S) INFORMATION
Quantity 1
Operation Number/Labor Hours XX975XRX / 0.3
