Variable Induction Check Valve: Testing and Inspection

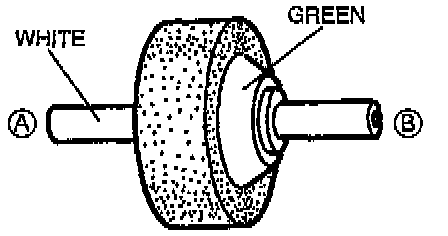

CHECK VALVE
Inspection
1. Remove the check valve.




2. Blow through A and verify that air flows from B.
3. Blow through B and verify that air does not flow from A.
4. Replace the check valve if necessary.
