Liquid Vapor Separator: Testing and Inspection
EVAPORATIVE EMISSION SYSTEMFUEL VAPOR VALVE
Inspection
1. Remove the fuel vapor valve.

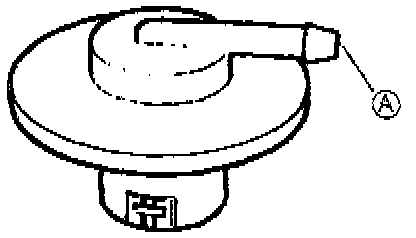

2. Verify that air flows through the valve from port A when the valve is held as shown in the figure.

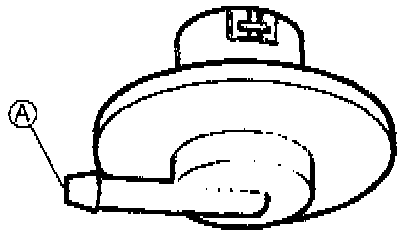

3. Verify that no air flows through the valve from port A when the valve is held as shown.
4. If not as specified, replace the fuel vapor valve.
