Evaporative Emission Control Canister: Testing and Inspection

CHARCOAL CANISTER
Inspection

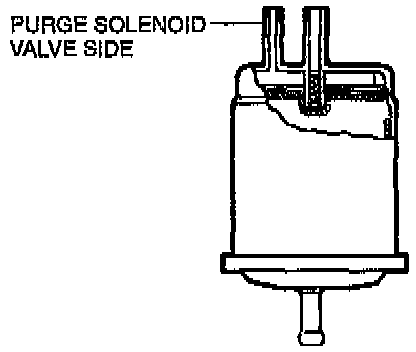

Charcoal Cannister:

1. Plug the charcoal canister vent side port and purge solenoid valve side port.
2. Blow air into the charcoal canister and verify that no air leaks.
3. If air leaks, replace the charcoal canister.
