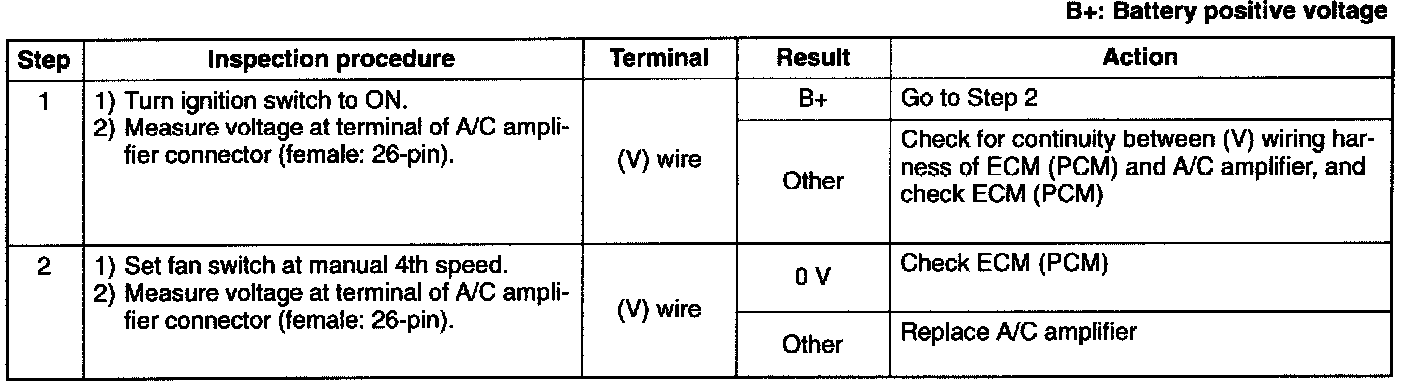

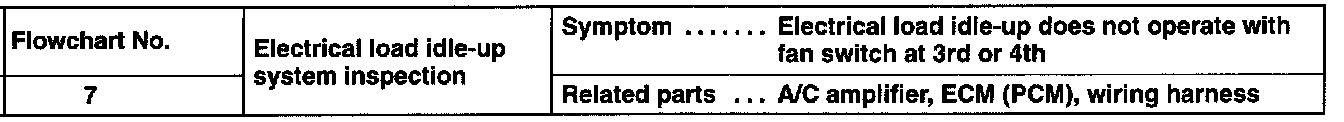

Flowchart No. 7: Electrical Load Idle-Up System Inspection
Flowchart No. 7: Electrical Load Idle-Up System Inspection
