Removal and Installation

1. Remove drive belt.
2. Remove power steering pump pulley nut, Fig. 27 and 28, by inserting wrench adjuster tool No. 49 G032 354, or equivalent, into hole of pulley while loosening nut.
3. Remove power steering pump hose bracket and pump bracket.
4. Disconnect power steering pump pressure switch electrical connector.
5. Remove power steering pump pressure pipe and return hose.
6. Remove power steering pump.
7. Reverse procedure to install. Insert wrench adjuster tool No. 49 G032 354, or equivalent, into hole of pulley while tightening power steering pump pulley nut.

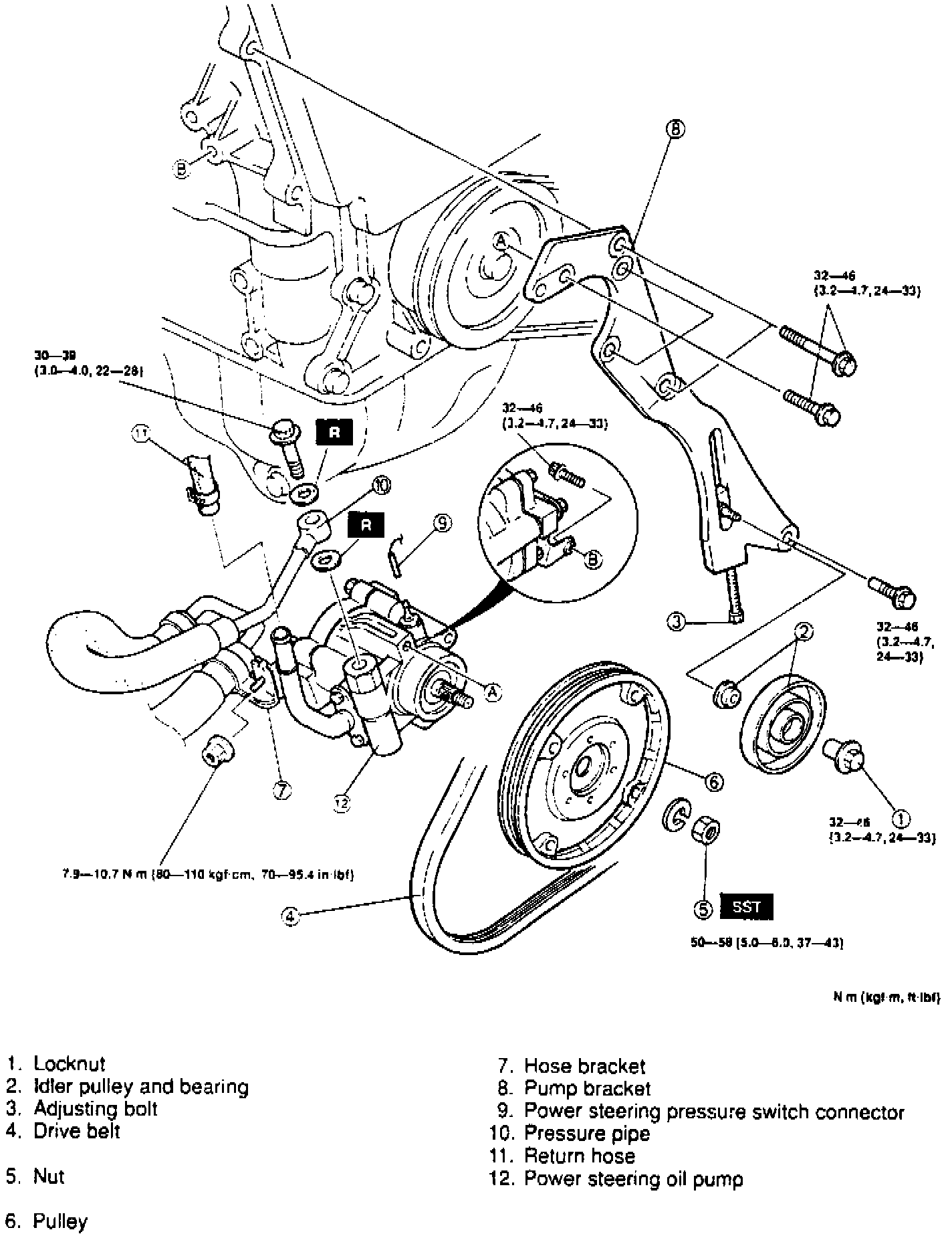

Fig. 27 Power Steering Pump Replacement:

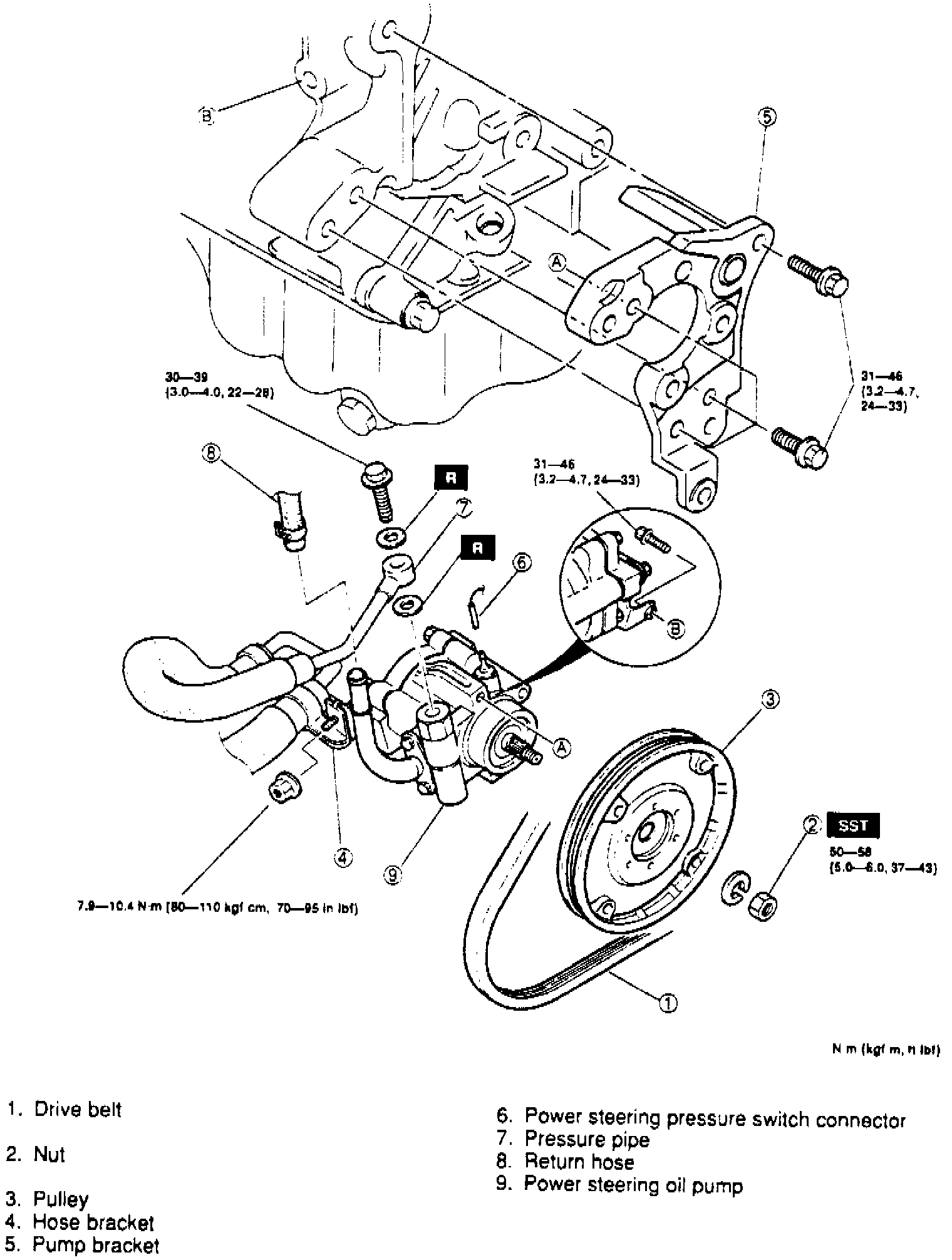

Fig. 28 Power Steering Pump Replacement:
