Home
>>
Mazda
>>
1996
>>
Millenia V6-2255cc 2.3L DOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

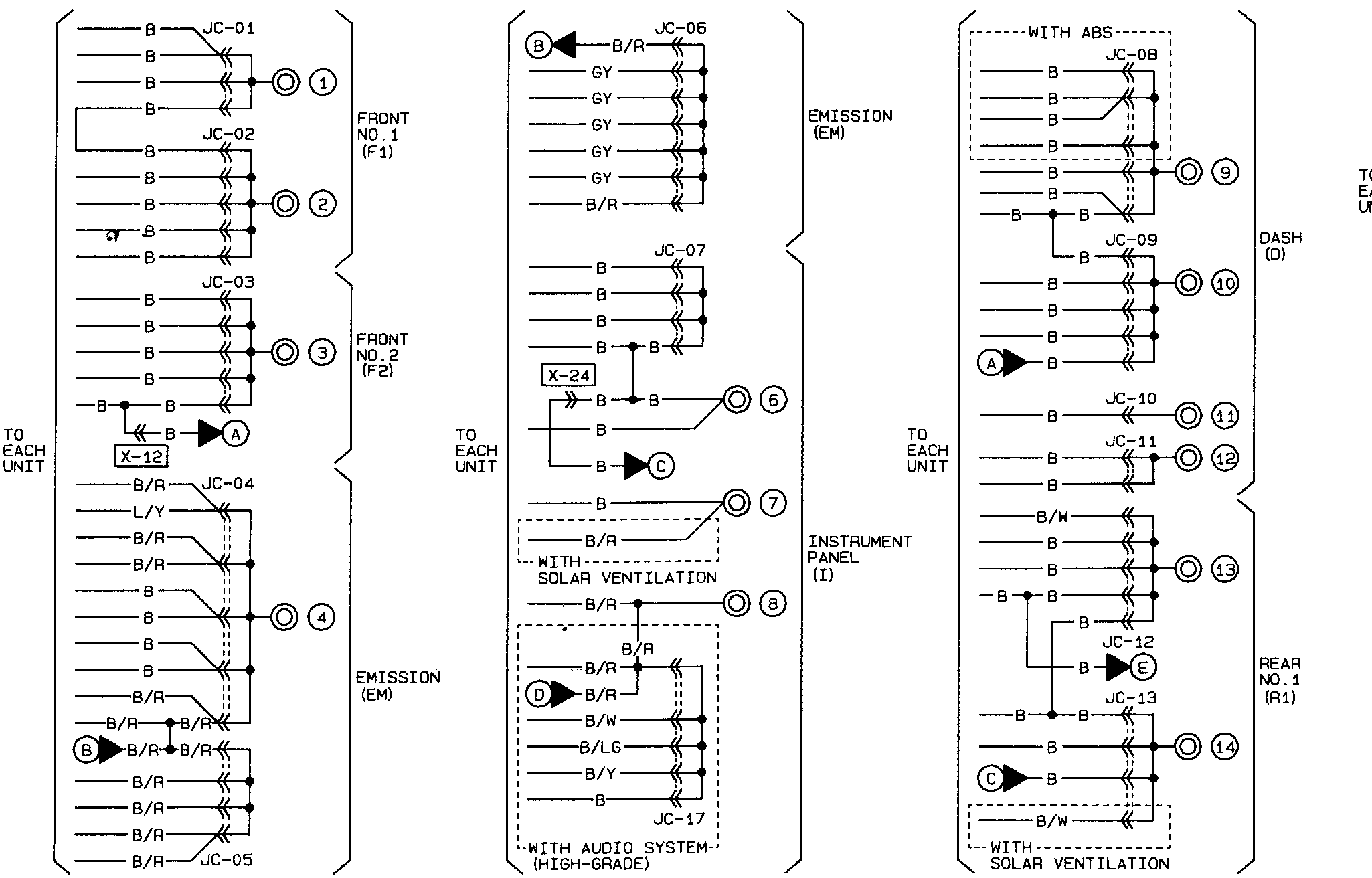

�N,^Ground Points:
