Vacuum Pump: Service and Repair
Removal / Installation
1.

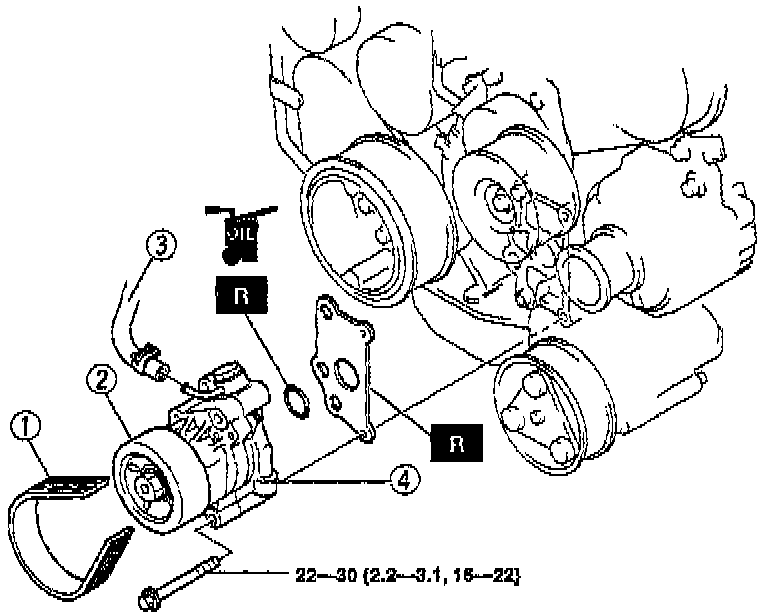

Remove in the order shown in the figure.
2.
Install in the reverse order of removal.
1.
Drive belt (Generator)
2.
Pulley
3.
Vacuum hose
4.
Vacuum pump
