Accelerator Pedal: Service and Repair
ACCELERATOR PEDALRemoval / Inspection / Installation

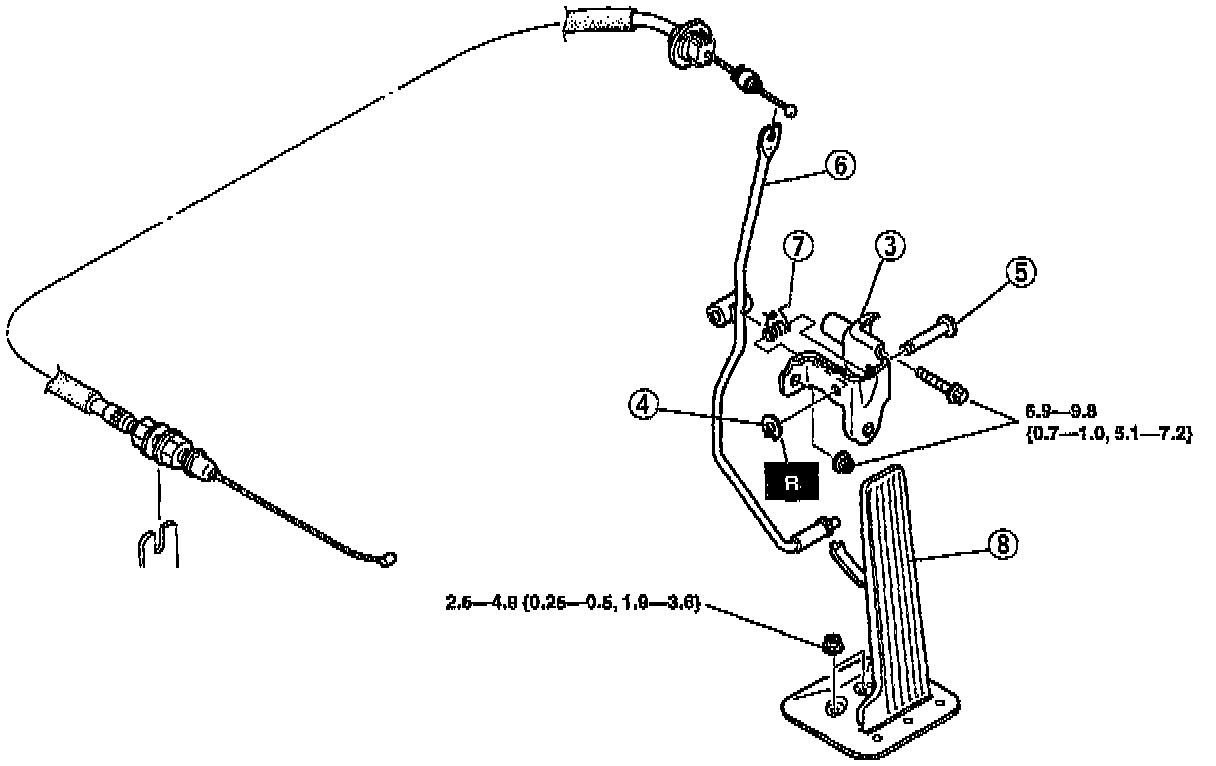

1. Remove in the order shown in the figure.
2. Inspect all parts and repair or replace as necessary.
3. Install in the reverse order of removal.

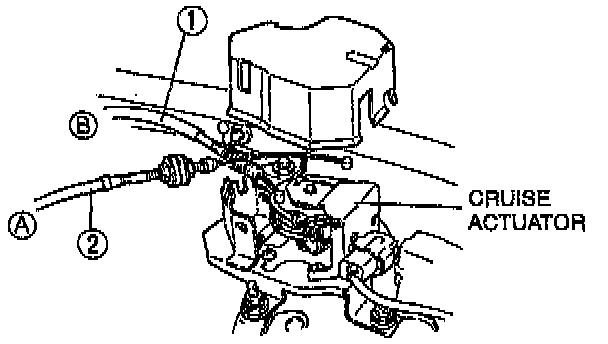

1. Accelerator cable (throttle body)
2. Accelerator cable (accelerator pedal)
3. Retainer
4. Clip
5. Shaft
6. Rod
7. Return spring
8. Accelerator pedal
