Liquid Vapor Separator: Testing and Inspection

EVAPORATIVE EMISSION SYSTEM

FUEL VAPOR VALVE
Inspection




1. Remove the fuel vapor valve.

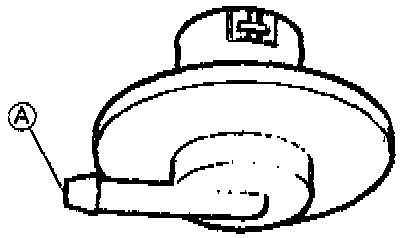

2. Verify that air flow through the valve from port A when the valve is held as shown in the figure above.

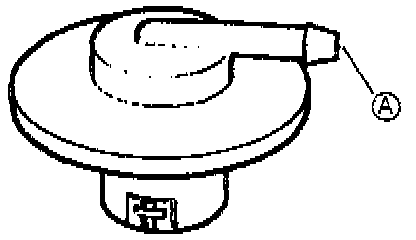

3. Verify that no air flows through the valve from port A when the valve is held as shown above.
4. If not as specified, replace the fuel vapor valve.
