Evaporative Emission Control Canister: Service and Repair

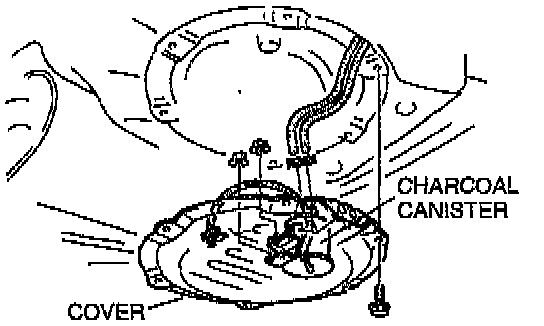

CHARCOAL CANISTERRemoval / Installation
1. Remove the cover.
2. Remove the charcoal canister.
3. Install in the reverse order of removal.
Tightening torque: 7.9-10.7 N-m (80-110 kg-cm, 70-95.4 in-lb)
Installation Note, Cover
Install the cover with F mark facing front of the vehicle.
