Check Valve (Two-Way)

CHECK VALVE (TWO-WAY)
Inspection
1. Remove the check valve (two-way).

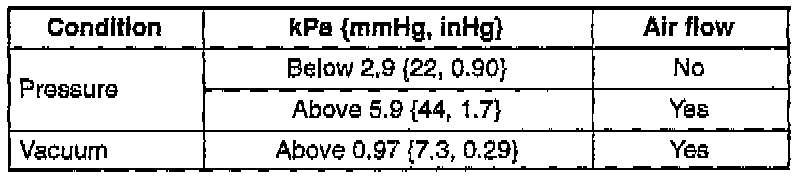

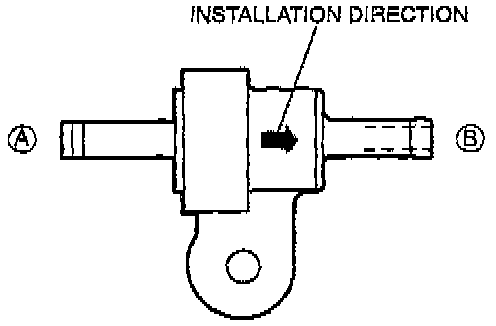

2. Apply pressure or vacuum to port A of the valve by using a vacuum pump, and check for the air flow.




3. If not as specified, replace the check valve (two-way).
