Check Valve (One-Way)

CHECK VALVE (ONE-WAY)
Inspection




1. Remove the check valve (one-way).

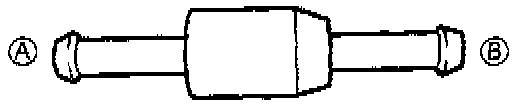

2. Blow through the check valve from port A, and verify that the air flow from port B.
3. Blow through the check valve from port B, and verify that there is not air flow.
4. If not as specified, replace the check valve (one-way).
