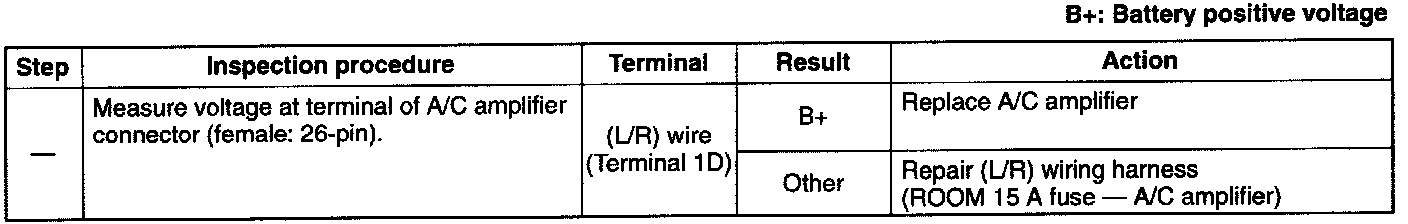

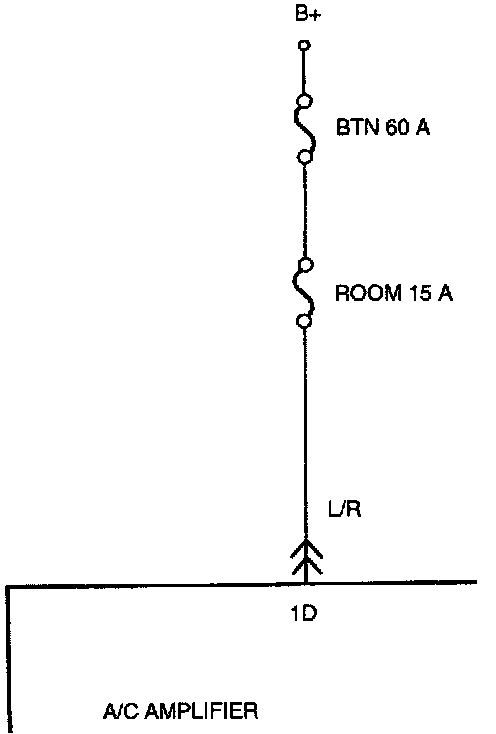

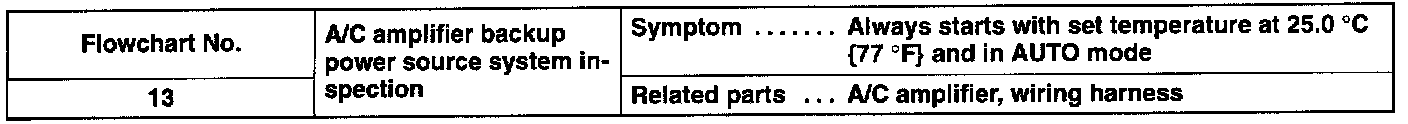

Flowchart No. 13: Amp. Backup Power Source System Inspect
Flowchart No. 13: Amp. Backup Power Source System Inspect
