A/C - Dash Ventilators Inoperable

Bulletin No.: 018/96
Issued: 05/15/96
Revised

Category
S

Applicable Model/s
1995-96 Millenia

Subject:
UNABLE TO OPERATE VENTILATORS / AND OR LOOSE VENTILATOR GRILLE

APPLICABLE MODELS/VINS
All 1995 Millenia
1996 Millenia with a VIN of JM1TA22**T1205297 and lower.

DESCRIPTION

When operating the dial and louver on the dash ventilator, the dial may be pushed below the surface of the ventilator and the grille may be loose. In this position, the ventilator can not be adjusted.

This concern is caused by detached or broken hooks securing the ventilator grille to the ventilator body. To prevent this concern, the production method has changed.

Customers complaining of this concern should have the ventilator repaired according to the instructions in this bulletin.

REPAIR PROCEDURE

1. Verify the complaint.

2. Remove the ventilator from the dash.

3. Inspect the hooks on the ventilator grille.

^ If the hooks are not broken, proceed to step 4.

^ If the hooks are broken, replace the part with a new part.

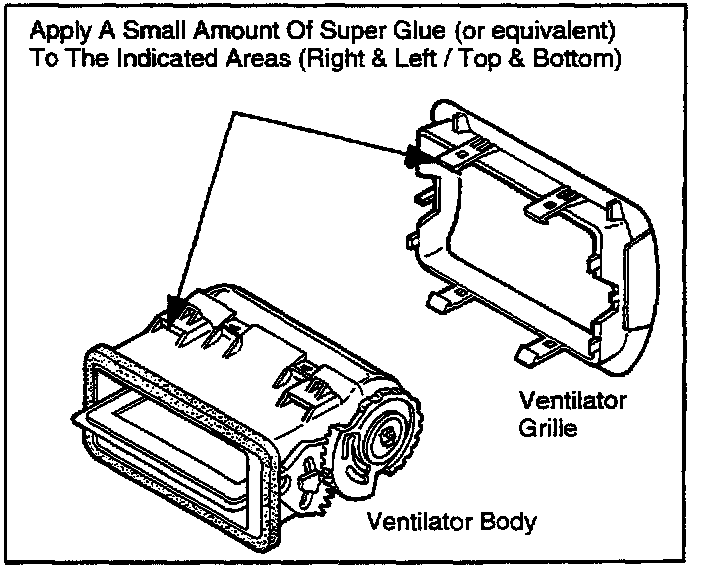

4. Apply super glue (or equivalent) to the areas shown.

5. Assemble ventilator.

6. Install ventilator.

PARTS INFORMATION

Part Number Description

T001-64-730E-02 Ventilator (R)
T001-64-830E-02 Ventilator (L)

NOTE:
New parts are one piece (i.e. ventilator body and grille).

WARRANTY INFORMATION

(Applies To Verified Customer Complaints On Vehicles Covered Under Normal Warranty. Refer To The SRT Microfiche For Warranty Term Information.)

Warranty Type: A

Symptom Code: 88

Damage Code: 9A

Part Number Main Cause: Tool-64-830C-02 or Tool-64-730C-02

Quantity: 0, 1 or 2

Operation Number: XX0B23RX

Labor Hours: 0.3 Hrs (per side) (includes the cost of glue)
