Water Pump: Service and Repair

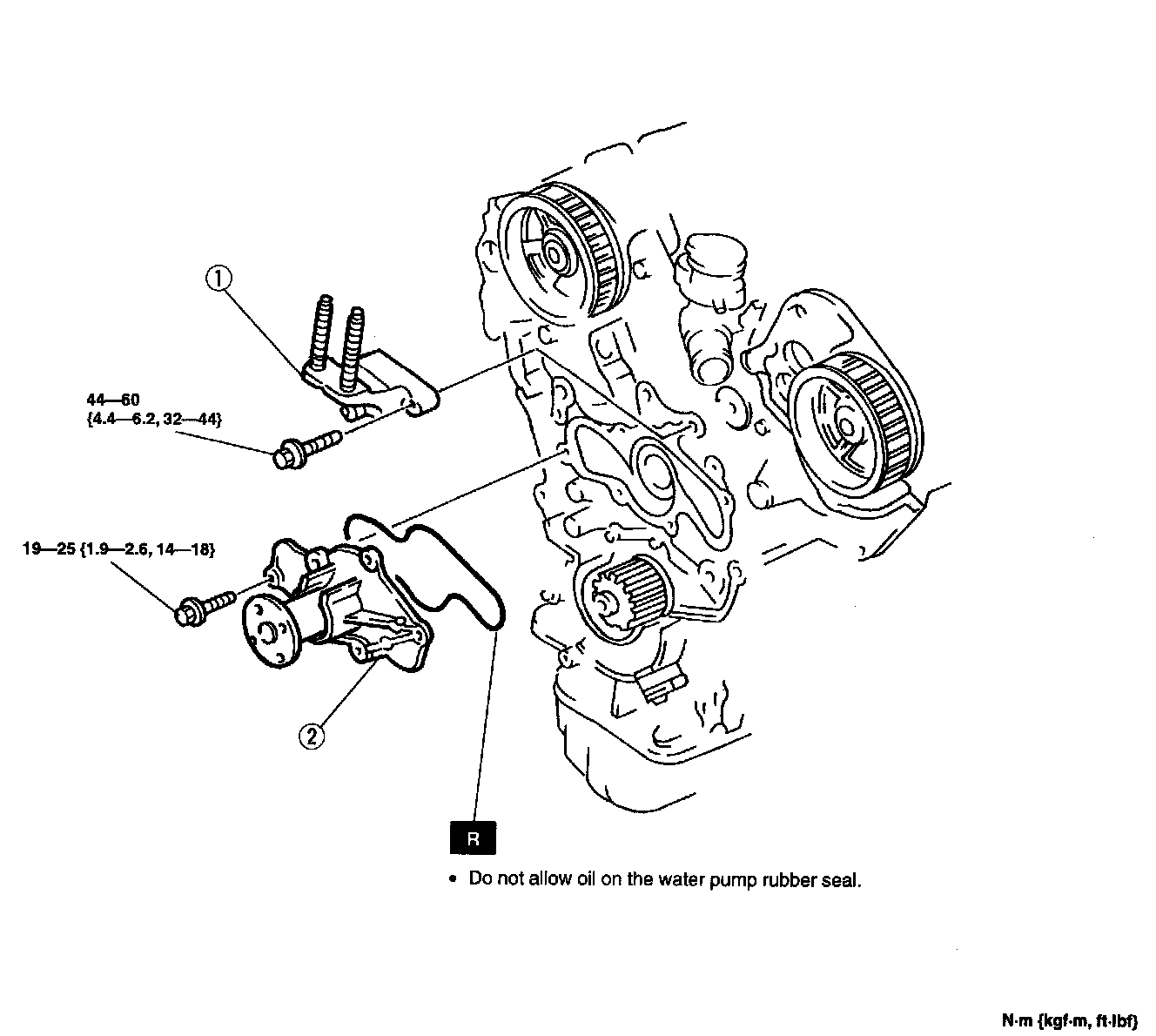

Legend
1. No.3 engine mount bracket
2. Water pump

REMOVAL / INSTALLATION
1. Disconnect the negative battery cable.
2. Drain the engine coolant.
3. Remove the timing belt.
4. Remove in the order shown in the image.
5. Remove the water pump together with the timing belt.
6. Install in the reverse order of removal.

Steps After Installation
1. Install the timing belt.
2. Fill the radiator and radiator reservoir with the specified amount and type of engine coolant.
3. Start the engine and check for coolant leaks.
