Home >> Mazda >> 1996 >> Millenia V6-2255cc 2.3L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Computers and Control Systems >> Engine Control Module >> Engine Control System >> B-2D

B-2D

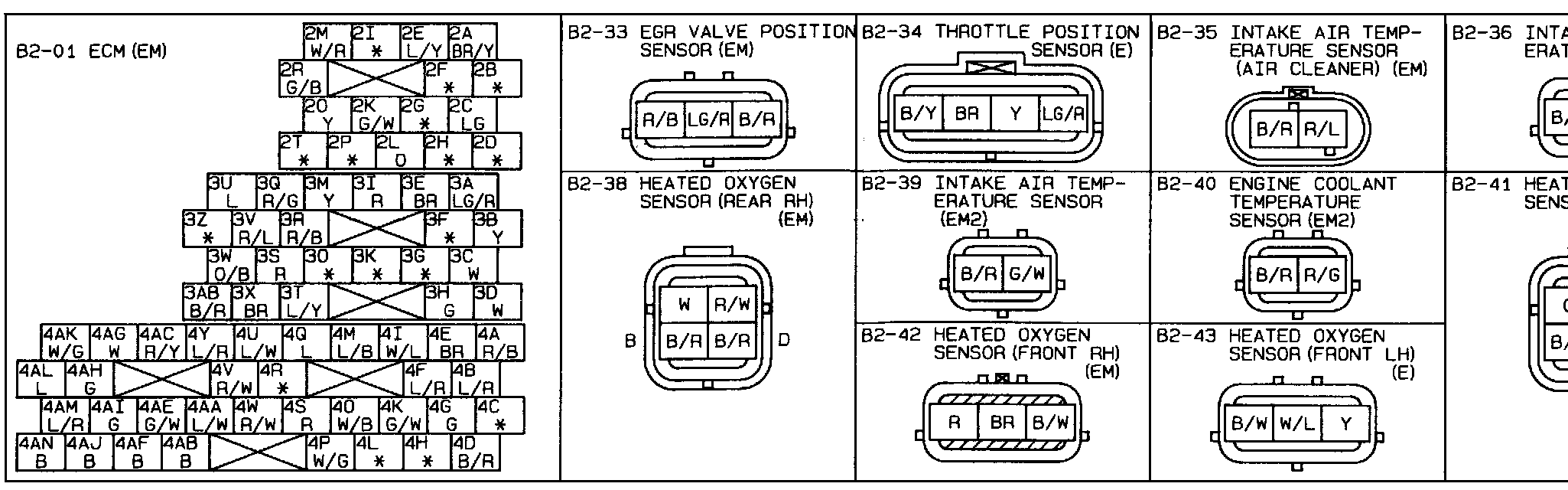

��REngine Control System-Connectors B-2D:
