Pinout Values and Diagnostic Parameters

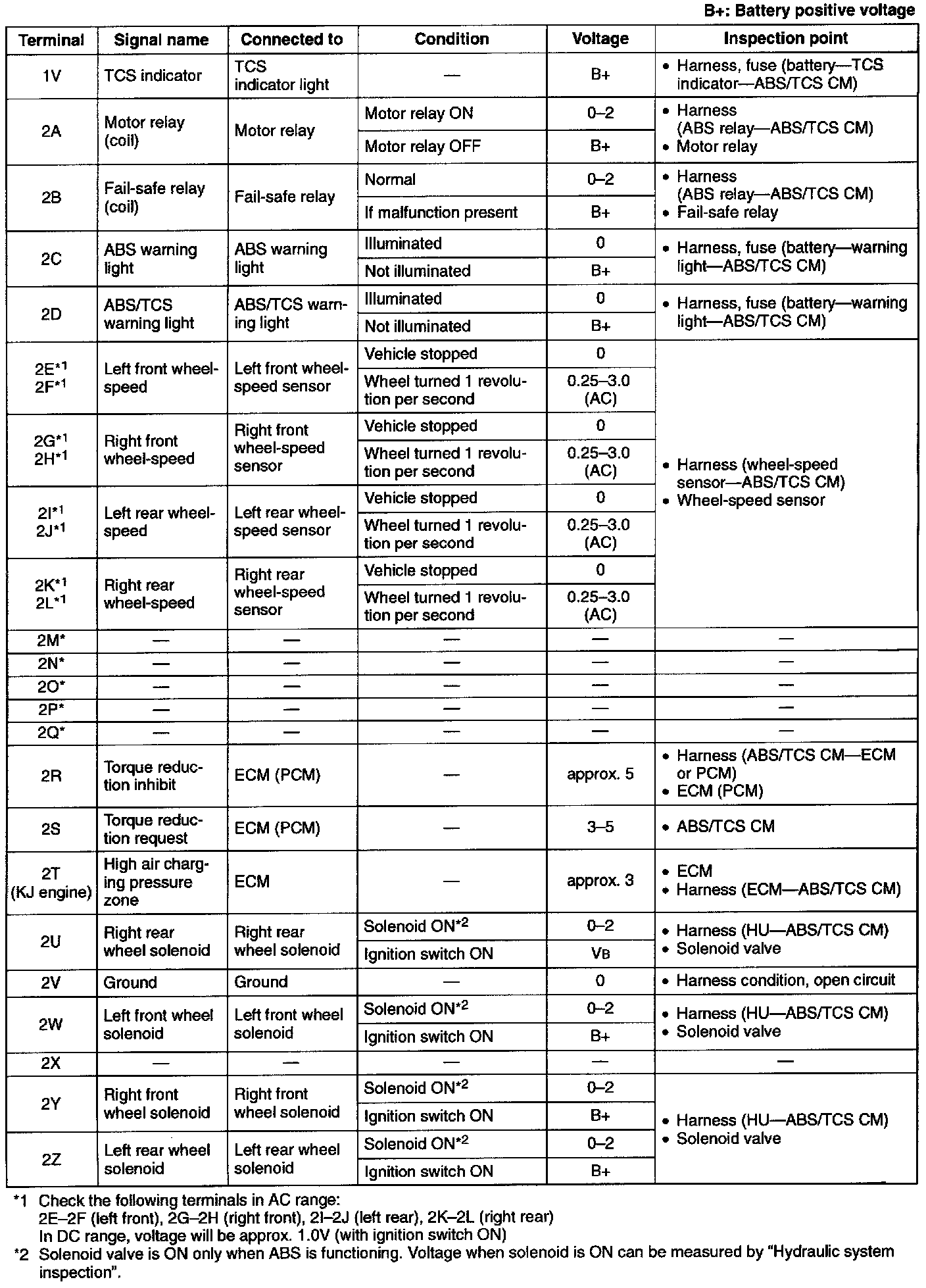

ABS/TCS CONTROL MODULE INSPECTIONTerminal voltage chart (reference value)
Ignition switch is ON, and connector is connected unless indicated otherwise.

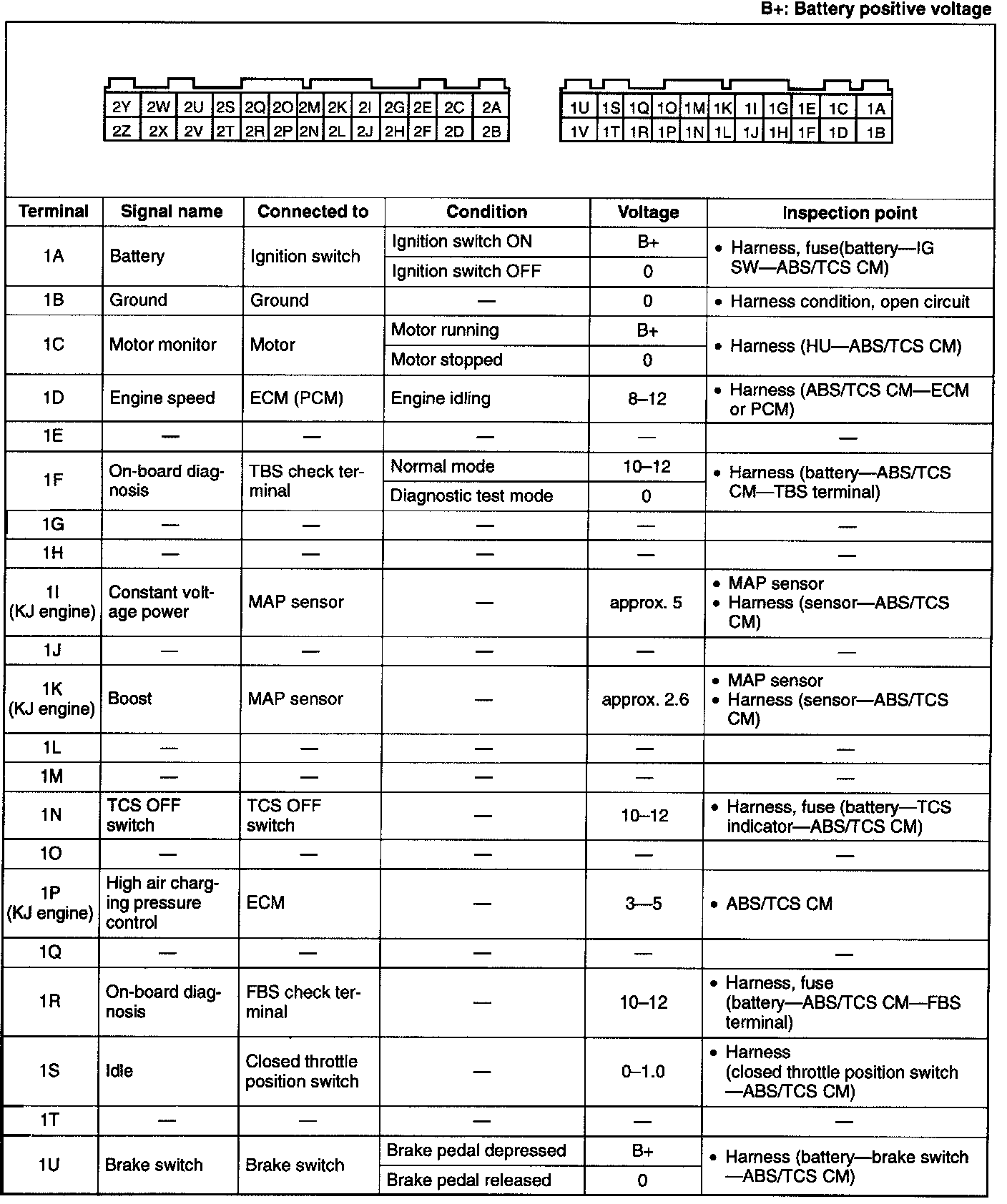

Terminal voltage chart (reference value)
Ignition switch is ON, and connector is connected unless indicated otherwise.
