ABS Motor

1. Place ignition switch in Off position and disconnect ABS control unit connector, then proceed as follows:
a. On models less Traction Control System (TCS), measure resistance between control unit connector terminal 1L and ground, Fig. 116.
b. On models with TCS, measure resistance between control unit connector terminal 1C and ground, Fig. 117.

2. If resistance is more than 1 ohm, disconnect ABS hydraulic unit 2-pin connector and measure resistance between terminals.
3. Apply battery voltage to 2-pin connector and listen for motor operation.
4. If resistance between hydraulic unit 2-pin connector terminals exceeds 1 ohm or motor does not operate with battery voltage applied, repair harness or replace hydraulic unit.

Fig. 116 ABS Control Unit Connector No. 1 Terminal Identification:

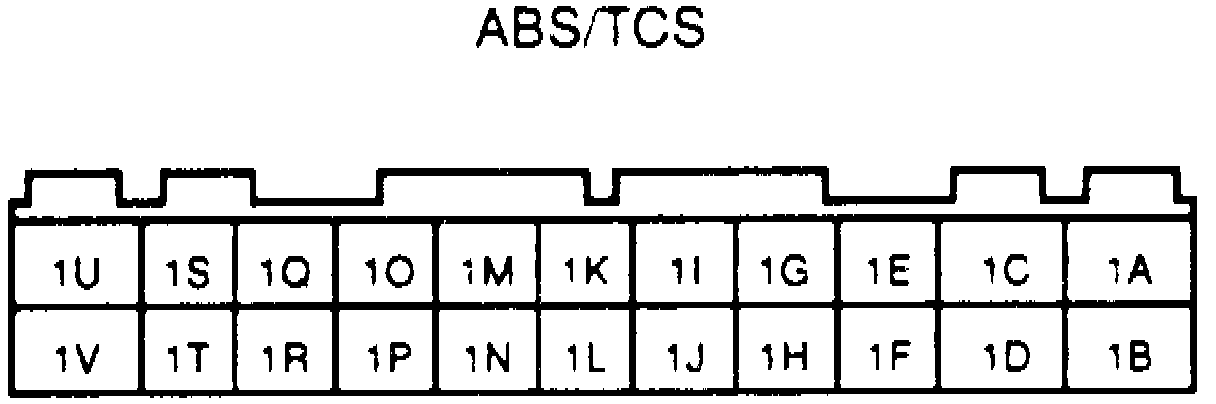

Fig. 117 ABS Control Unit Connector No. 1 Terminal Identification:
