Mazda
>>
1996
>>
Millenia V6-2255cc 2.3L DOHC
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Diagrams
>>
Connector Views
Connector Views

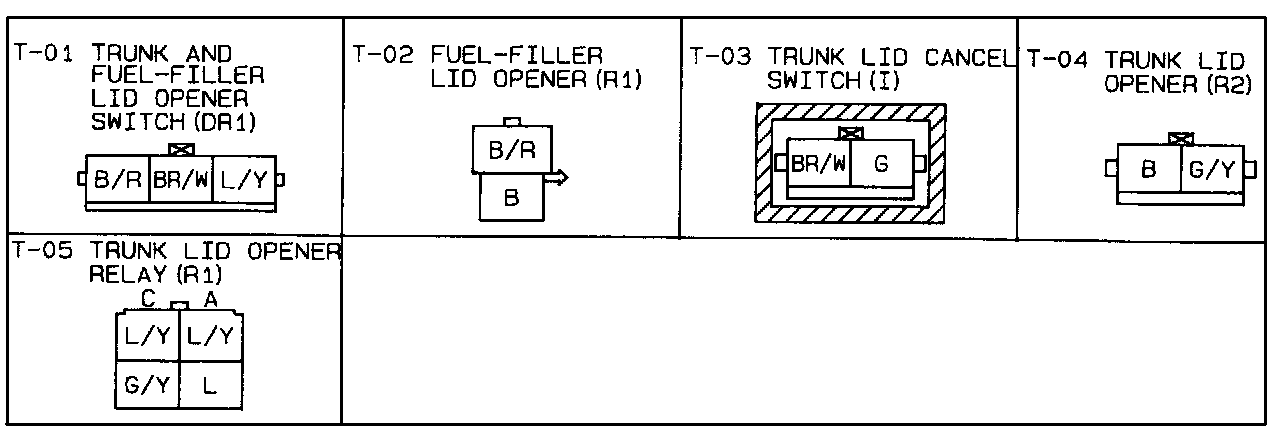

Trunk Lid Opener, Fuel-Filler Lid Opener-Connectors:
