Diagnostic Trouble Code Interpretation - ABS

Refer to Fig. 29 for diagnostic trouble code interpretation and Fig. 30 through 35 for flow charts addressing specific diagnostic trouble codes.

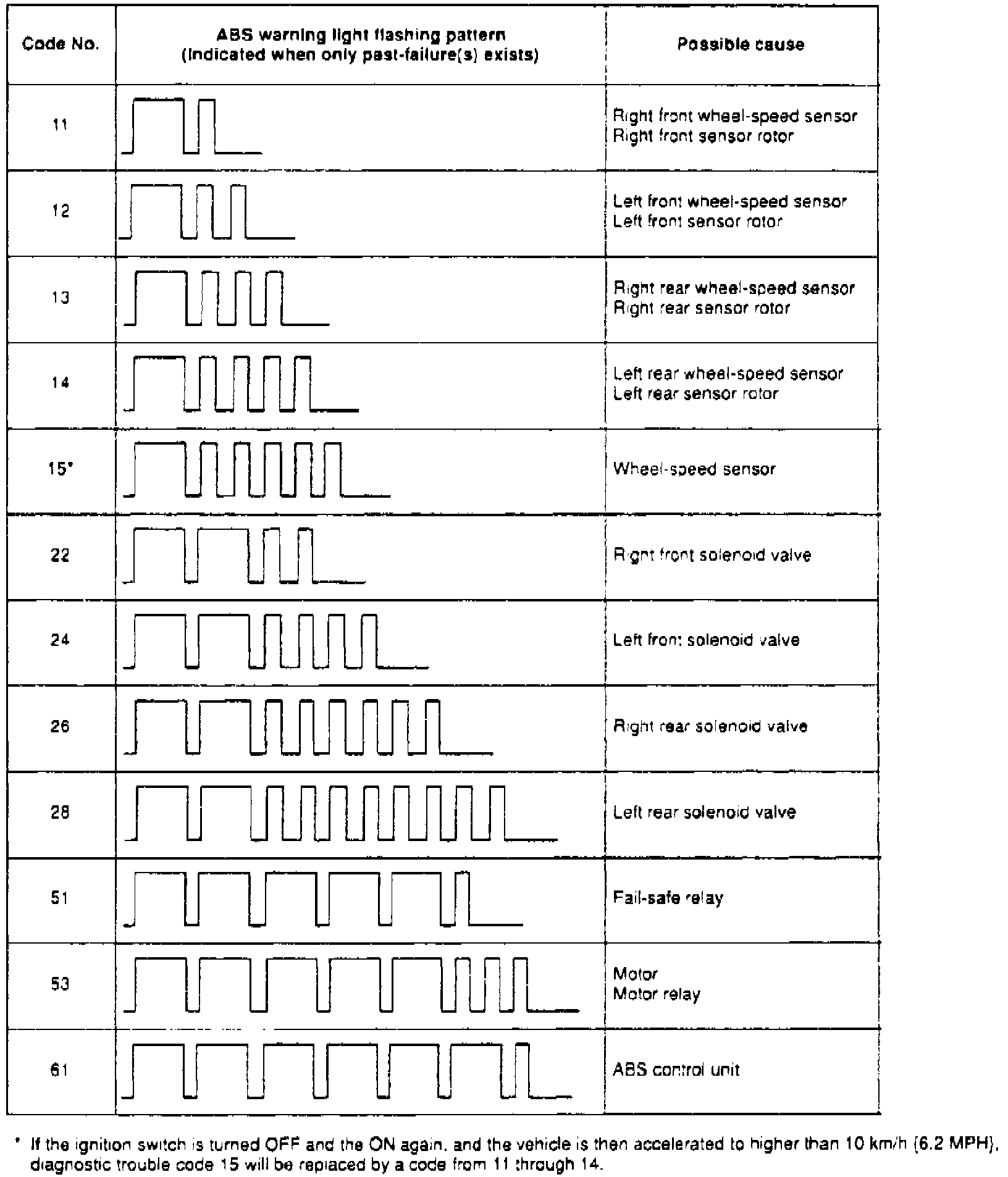

Fig. 29 Diagnostic Trouble Code Interpretation:

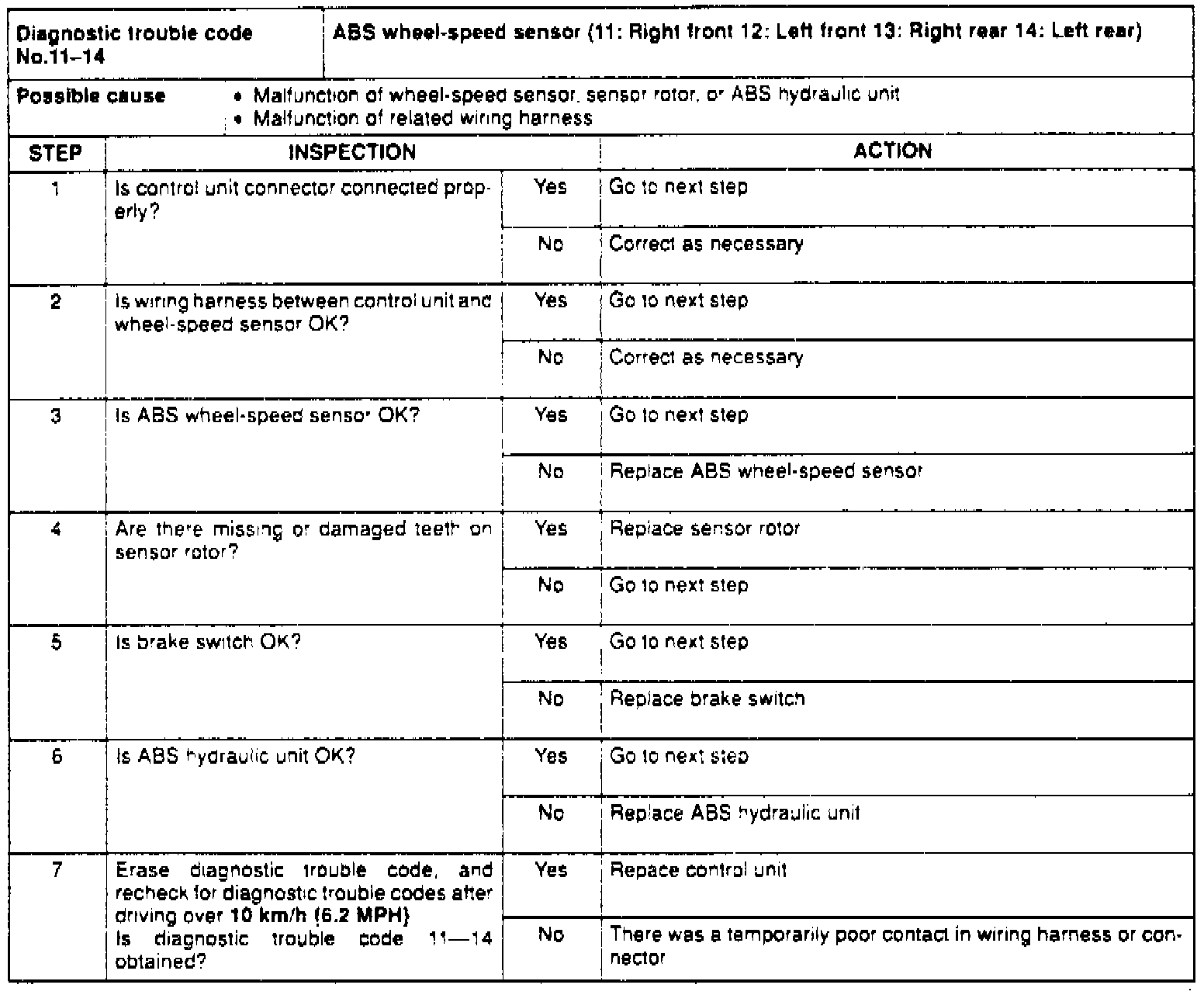

Fig. 30 Codes 11,12,13 & 14: ABS Wheel Speed Sensor:

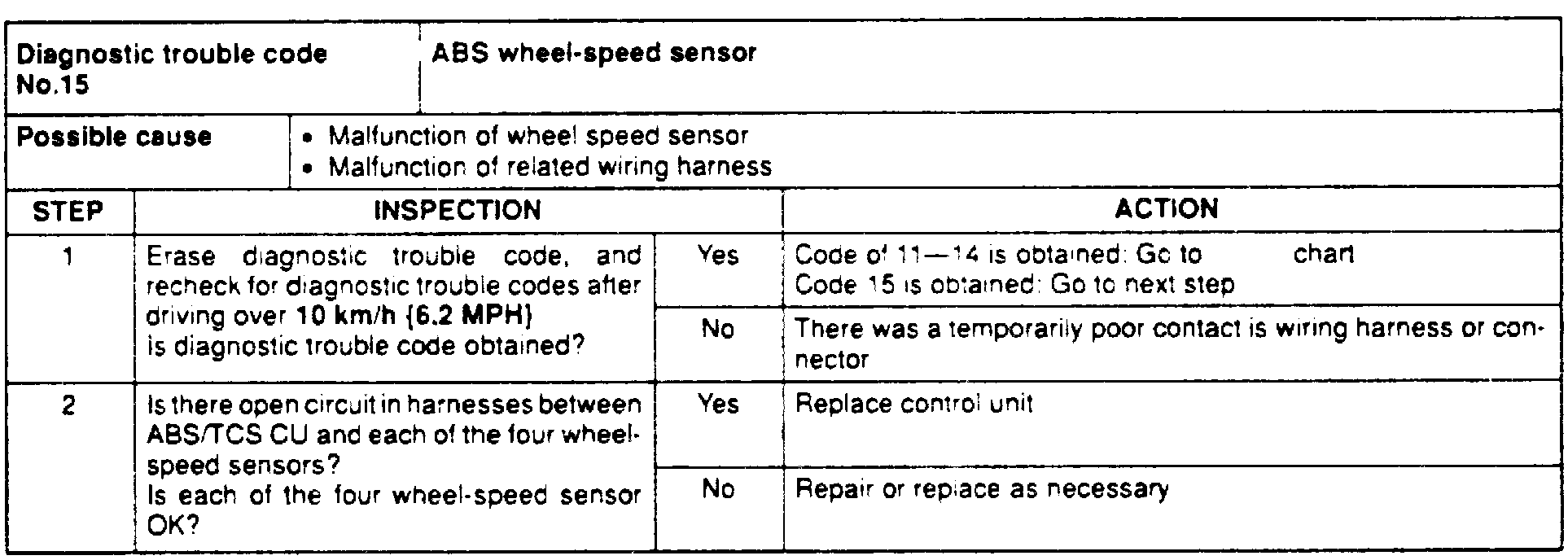

Fig. 31 Code 15: ABS Wheel Speed Sensor:

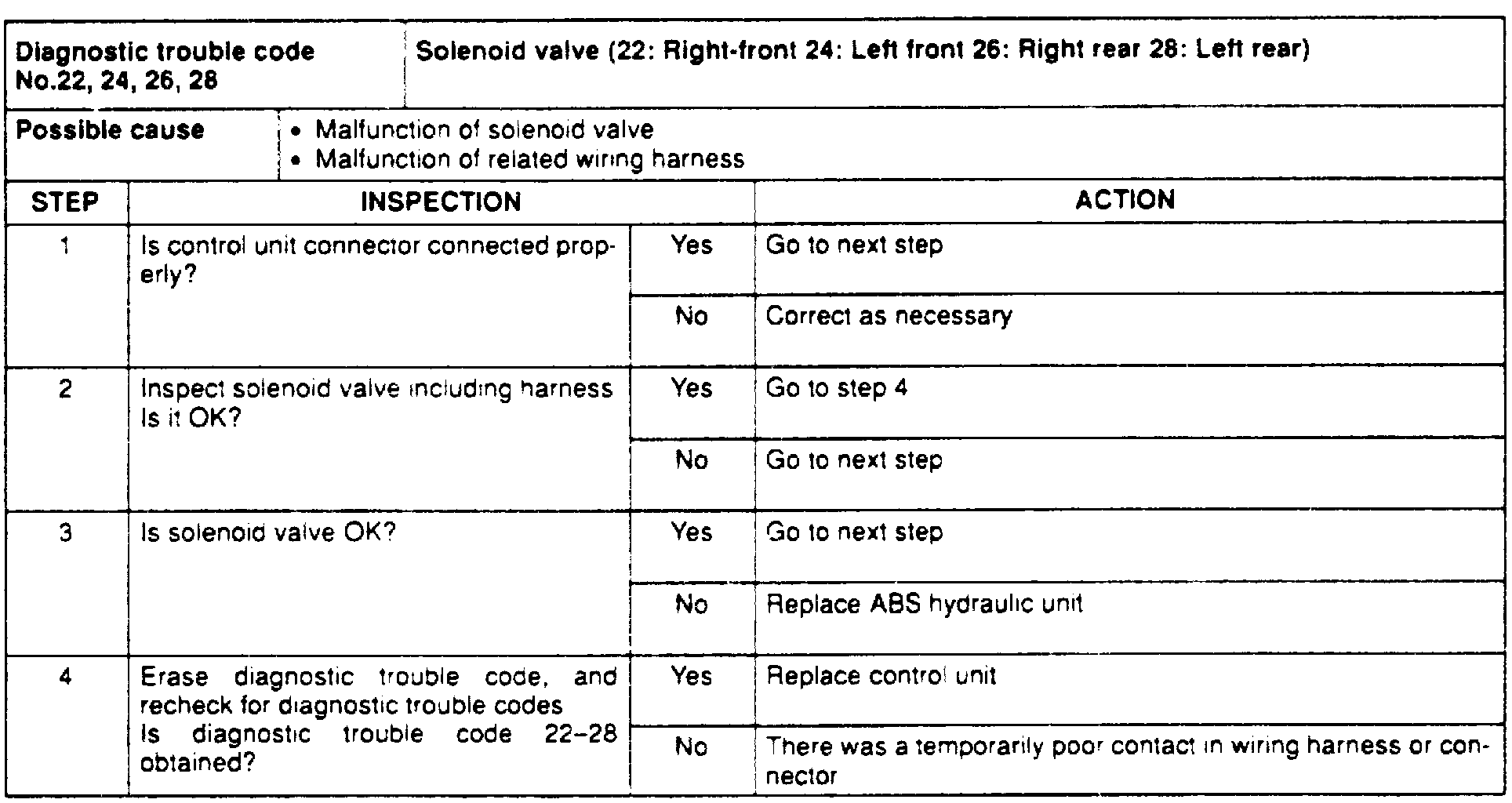

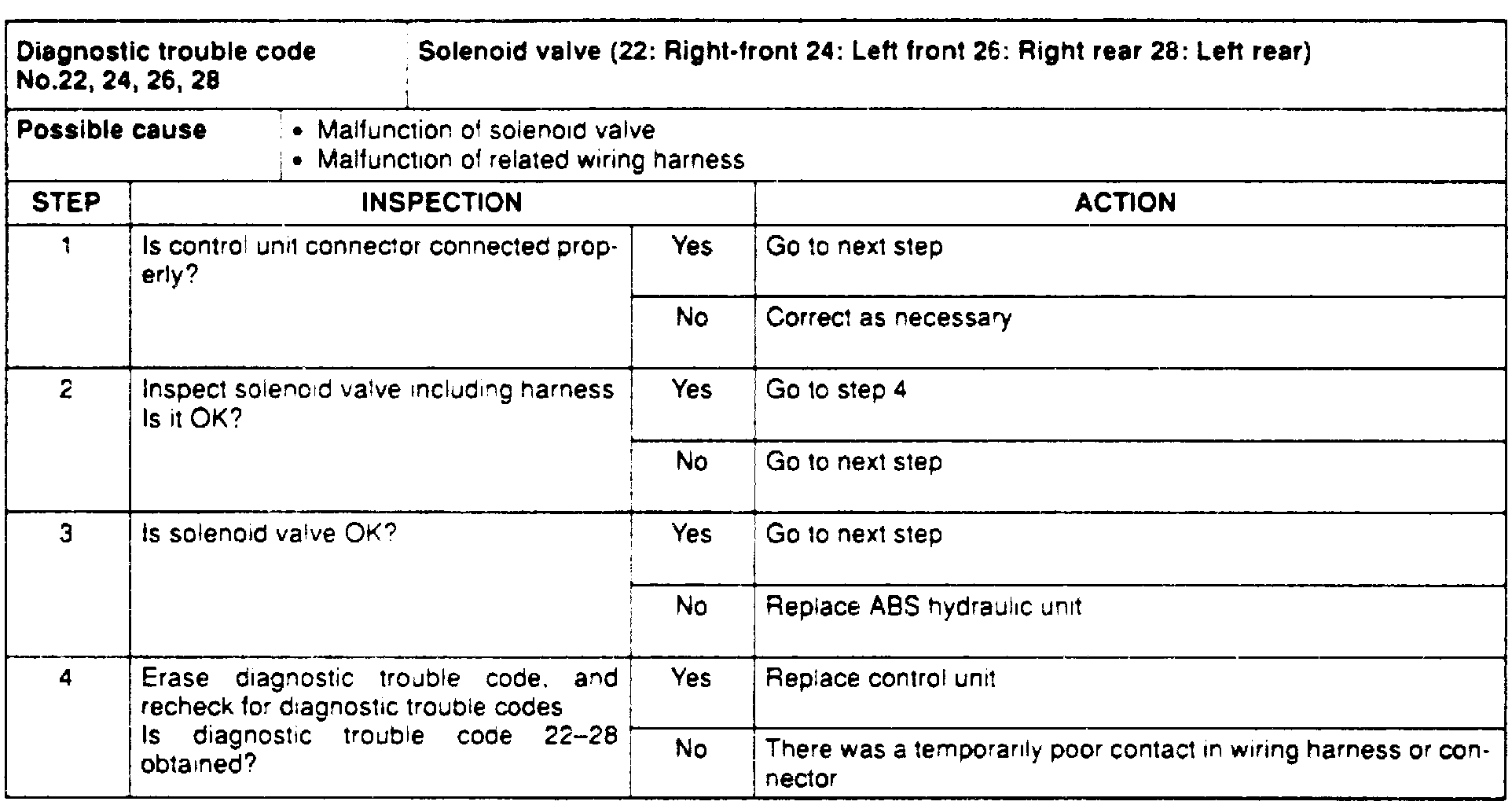

Fig. 32 Codes 22,24,26 & 28: Solenoid Valve:

Fig. 33 Code 51: Fail-Safe Relay:

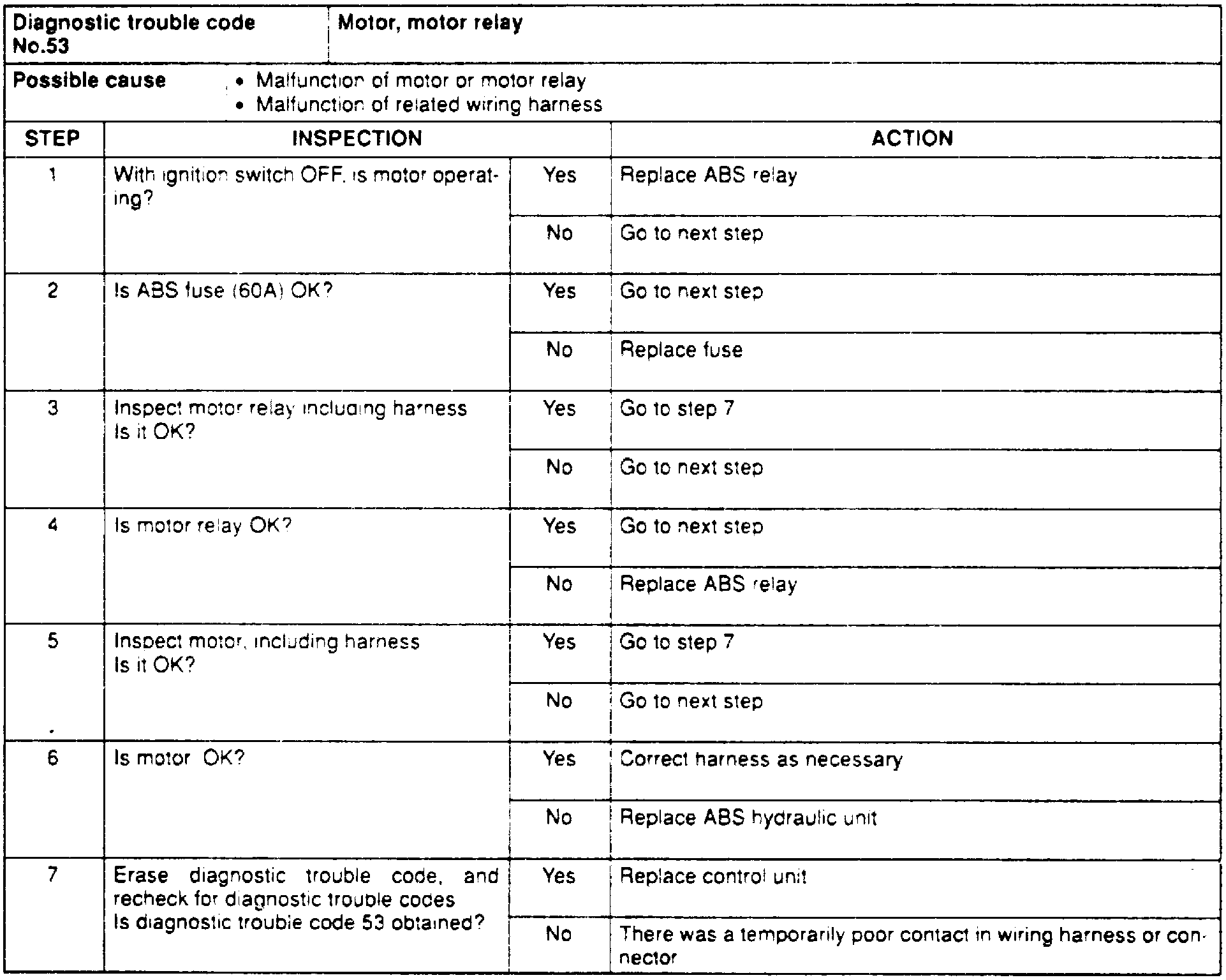

Fig. 34 Code 53: Motor Or Motor Relay:

Fig. 35 Code 61: ABS Control Unit:
