Intake Manifold: Testing and Inspection

Checking Intake Flatness:

AIR INTAKE PIPE/INTAKE MANIFOLD INSPECTION
1. Check for damage and cracks.

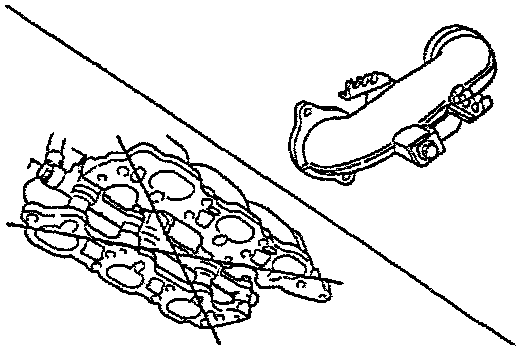

2. Verify flatness of the air intake pipe and intake manifold contact surface as shown.
3. Replace the air intake pipe and/or intake manifold, if necessary.
